PA4342.901ANLT

Fixed Inductors Overview

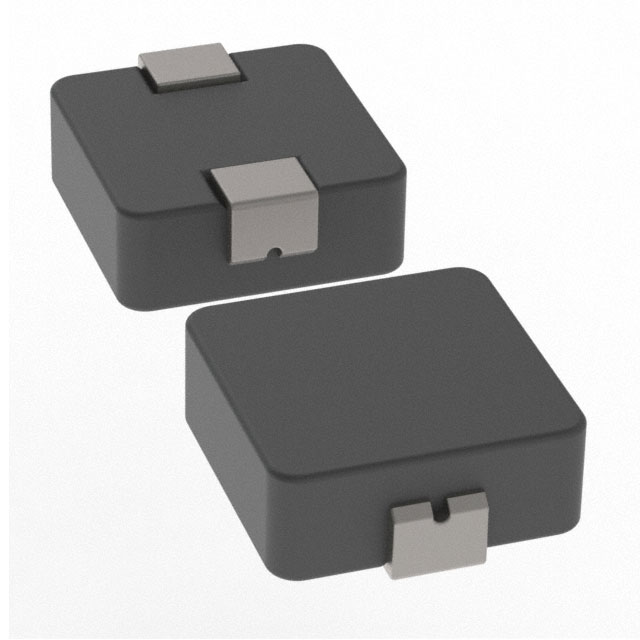

The PA4342.901ANLT is a shielded, molded surface-mount power inductor from Pulse Electronics. It features an inductance of 0.9 µH with a tolerance of ±20%. The component supports a maximum DC current of 19 A and a saturation current of 27 A. Its maximum DC resistance is low, ensuring efficient power handling. Designed for high-current applications, it operates within a temperature range of -55°C to +125°C and meets AEC-Q200 qualification standards.

Fixed Inductors Feature Summary

• Shielded molded construction minimizes electromagnetic interference
• High saturation current capability for robust performance
• AEC-Q200 qualified for automotive reliability requirements

Fixed Inductors Applications

• Automotive battery management systems
• High current power supply circuits
• DC-DC converter output filtering

Fixed Inductors Procurement Notes

Verify the specific suffix 'ANLT' against official manufacturer documentation to confirm package dimensions and thermal characteristics. Ensure that the selected variant matches the required saturation current and DC resistance specifications for the target application. Cross-reference the datasheet for accurate reflow soldering profiles and moisture sensitivity levels prior to procurement.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring high current density in a compact footprint. The 0.9 µH value suits low-inductance filtering needs. Consider the 27 A saturation limit for peak load conditions. Verify compatibility with standard SMT assembly processes and ensure the operating temperature range aligns with the environmental constraints of the final product.

Fixed Inductors Part Context

This part belongs to the PA4342 series of high-power surface-mount inductors. The series offers various inductance values optimized for different current ratings. The PA4342.901ANLT specifically targets applications demanding high efficiency and low profile. It complements other components in power conversion modules where space and thermal performance are critical design factors.

Fixed Inductors Replacement Considerations

Consult official substitution lists for compatible parts within the PA4342 family. Verify pinout and dimensional compatibility before replacing. No direct substitute part numbers are confirmed in public data.
