PA5404.102NLT

$0.42

Description：FIXED IND 1UH 15A 6.5 MOHM SMD
Series：PA5404
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:dab88838892f Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

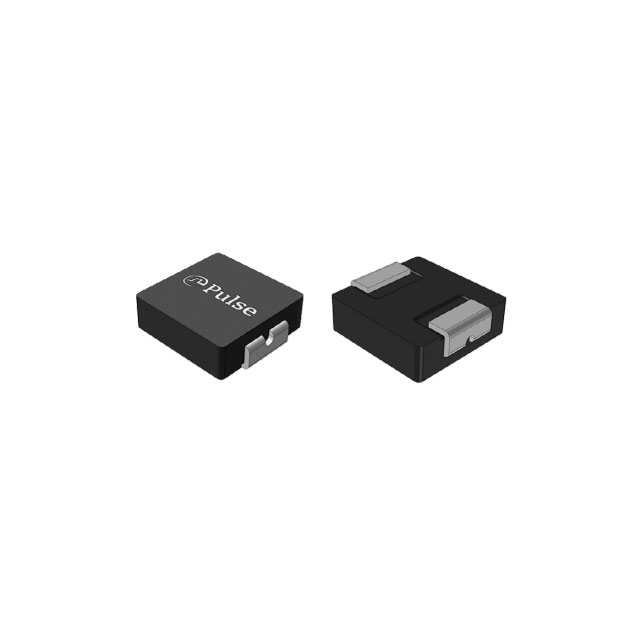

PA5404.102NLT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is FIXED IND 1UH 15A 6.5 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for PA5404.102NLT

Description：FIXED IND 1UH 15A 6.5 MOHM SMD
Series：PA5404
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Type：Molded
Material - Core：-
Inductance：1 µH
Tolerance：±20%
Current Rating (Amps)：15 A
Current - Saturation (Isat)：20A
Shielding：Shielded
DC Resistance (DCR)：6.5mOhm Max
Q @ Freq：-
Frequency - Self Resonant：50MHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max)：0.197" (5.00mm)
Features：-

Fixed Inductors datasheet and documents for PA5404.102NLT

PA5404.102NLT

Fixed Inductors Overview

The PA5404.102NLT is a shielded surface-mount power inductor from Pulse Electronics, part of the PA5404 series. It features a molded core construction with an inductance of 1 µH and a tolerance of ±20%. The component supports a maximum DC current of 12 A and a saturation current of 16.5 A, with a maximum DC resistance of 9 mΩ. Operating within a temperature range of -55°C to +125°C, it meets AEC-Q200 automotive qualification standards. Physical dimensions are 7.6 mm in length, 6.9 mm in width, and 5 mm in height.

Fixed Inductors Feature Summary

Shielded molded powder core design minimizes magnetic flux leakage
AEC-Q200 qualified for automotive reliability requirements
High saturation current capability handles transient load spikes
Low DC resistance optimizes power efficiency in high-current circuits

Fixed Inductors Applications

Automotive power distribution networks
Point-of-load voltage regulation modules
DC-DC converter output filtering
Industrial power supply stages

Fixed Inductors Procurement Notes

Verify the specific suffix NLT against official datasheets to confirm lead-free compliance and tape-and-reel packaging specifications. Ensure the ordered part matches the required inductance value and current ratings for the target application circuit. Cross-reference manufacturer documentation for accurate handling and soldering profiles.

Fixed Inductors Selection Notes

Select this component when space-constrained designs require high current handling in a compact SMD footprint. The shielded structure is critical for applications sensitive to electromagnetic interference. Verify that the 16.5 A saturation limit exceeds peak circuit currents to prevent performance degradation under load.

Fixed Inductors Part Context

This model belongs to the PA5404 series of high-power surface-mount inductors. The series offers various inductance values within consistent physical dimensions, allowing designers to standardize board layouts across different power stages while maintaining uniform thermal and mechanical characteristics.
