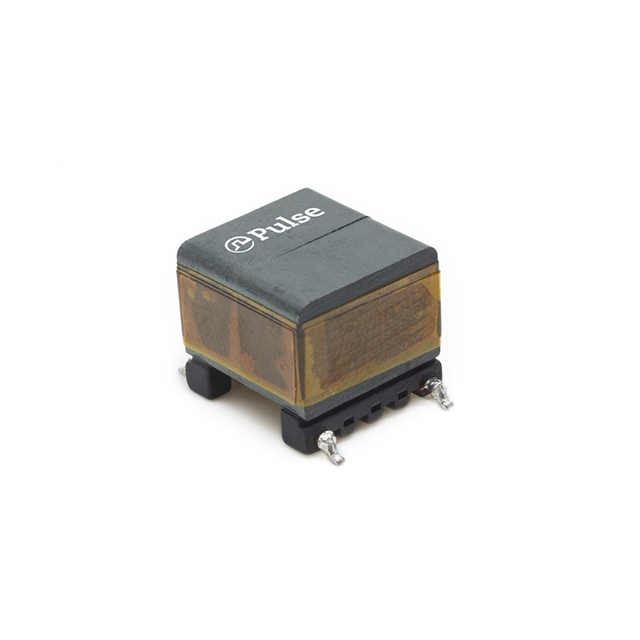

PAC6006.204NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 12A 2LN 1 KOHM SURFACE MOUNT. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PAC6006.204NLT
- Description：CMC 12A 2LN 1 KOHM SURFACE MOUNT
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：12A
- DC Resistance (DCR) (Max)：4.8mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.610" L x 0.531" W (15.50mm x 13.50mm)
- Height (Max)：0.531" (13.50mm)
- Package / Case：Horizontal, 4 J-Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：1 kOhms @ 7 MHz
Common Mode Chokes datasheet and documents for PAC6006.204NLT
Common Mode Chokes Overview
The PAC6006.204NLT is a surface-mount common mode choke manufactured by Pulse Electronics. It features an inductance of 230 µH and a maximum DC current rating of 12 A. The component has a typical DC resistance (DCR) of 4.8 mOhms and offers an impedance of 1 kOhm at 7 MHz. It withstands 1.5 kVrms voltage and operates within a temperature range of -40°C to +125°C.
Common Mode Chokes Feature Summary
- Surface-mount construction for automated assembly
- High current handling capability up to 12 A
- Effective noise suppression with 1 kOhm impedance at 7 MHz
Common Mode Chokes Applications
- Power line filtering in electronic equipment
- EMI suppression in high-current circuits
- Signal integrity protection in data lines
Common Mode Chokes Procurement Notes
Verify the specific electrical parameters, particularly inductance and DCR values, against the official manufacturer datasheet before procurement. Confirm that the package dimensions and pin configuration match the design requirements. Ensure the operating temperature range meets the environmental conditions of the final application.
Common Mode Chokes Selection Notes
Select this component when high current capacity and effective common mode noise reduction are required in a compact surface-mount form factor. Consider the 12 A rating and low DCR for efficiency in power applications. Verify compatibility with the target frequency range for EMI suppression needs.
Common Mode Chokes Part Context
This part belongs to the PAC6006 series of common mode chokes from Pulse Electronics. These components are designed for surface-mount technology and are suitable for applications requiring robust noise filtering in space-constrained environments. The series supports various inductance and current ratings to meet diverse circuit requirements.
Common Mode Chokes Replacement Considerations
Consult the official Pulse Electronics documentation for verified substitute part numbers within the same series or equivalent specifications from other manufacturers. Ensure any replacement matches the critical parameters of inductance, current rating, and physical dimensions.
