PAC6006.604NLT

Common Mode Chokes Overview

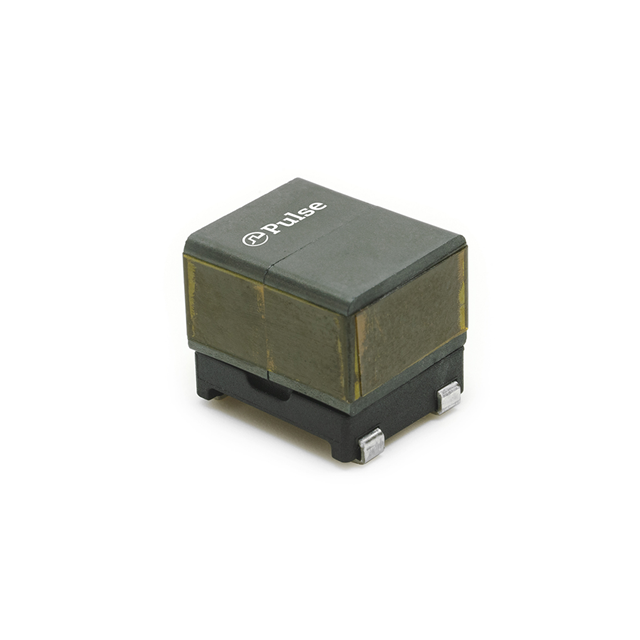

The PAC6006.604NLT is a surface-mount common mode choke from Pulse Electronics, built on an EP13 platform. It provides a nominal inductance of 608 µH and supports a rated current of 6.7 A. Key electrical characteristics include a maximum DC resistance of 16 mΩ, a differential impedance of 2.5 kOhms at 3.9 MHz, and dimensions of 15.5 mm x 15.5 mm x 13.5 mm.

Common Mode Chokes Feature Summary

• Surface-mount construction for automated assembly
• Dual-line filtering capability
• High current handling capacity

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in electronic circuits
• Signal integrity protection

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm exact tolerance ranges and thermal derating curves. Ensure the ordering suffix matches the required packaging format, such as tape and reel or cut tape, as these may affect handling procedures. Cross-reference the manufacturer part number with authorized distributor listings to confirm current availability status and lead times before finalizing procurement plans.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust common mode noise rejection at high currents. The EP13 package offers a compact footprint suitable for space-constrained layouts. Evaluate the 6.7 A saturation current against peak load requirements to ensure stable operation without significant inductance drop during transient events.

Common Mode Chokes Part Context

This component belongs to the PAC6006 series of common mode chokes manufactured by Pulse Electronics. The series utilizes the EP13 core platform, which is designed for high-performance power line filtering applications. These components are engineered to meet stringent electromagnetic interference standards while maintaining low insertion loss in the passband.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers: None identified.
