PAD1000YFFT

Overview

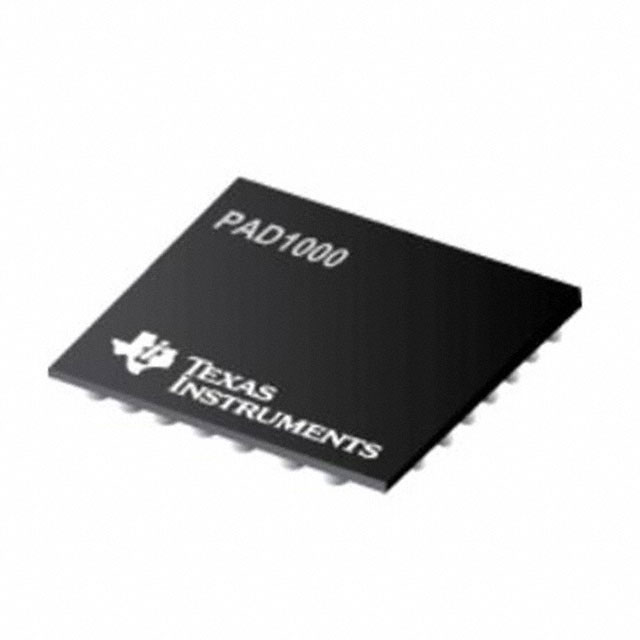

The PAD1000YFFT is a specialized integrated circuit manufactured by Texas Instruments, classified under Display Drivers & Controllers. It functions as a DLP DMD Analog ASIC, designed to interface with Digital Micromirror Device (DMD) panels within DLP projection systems. The component utilizes a DSBGA-49 surface-mount package for compact integration. It operates within the PAD1000 series and carries the Texas Instruments trademark associated with DLP technology. The device is supplied in reel formats compatible with automated assembly processes.

Feature Summary

• Functions as a DLP DMD Analog ASIC for display driver applications
• Utilizes DSBGA-49 SMD/SMT package for space-efficient mounting
• Part of the Texas Instruments PAD1000 series
• Designed for integration with DLP projection engine architectures

Applications

• Digital Light Processing (DLP) projection engines
• Display driver controller interfaces for DMD panels
• Optical imaging systems requiring analog DMD control

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct packaging configuration. Confirm that the DSBGA-49 package dimensions align with the target PCB footprint. Check current availability status as supply levels may fluctuate. Ensure compatibility with existing DMD panel specifications before procurement.

Selection Notes

Select this component when designing systems requiring analog interface capabilities for Texas Instruments DMD devices. Verify that the system architecture supports the PAD1000 series signal requirements. Consider the thermal characteristics of the DSBGA-49 package during layout. Ensure the design environment accommodates the specific pinout and electrical parameters defined in the official datasheet.

Part Context

This part belongs to the PAD1000 family of display drivers developed by Texas Instruments for their DLP technology ecosystem. These components are engineered specifically to drive micromirror arrays used in digital projection and imaging applications. The YFFT suffix indicates a specific tape-and-reel packaging variant intended for high-volume manufacturing environments.

Replacement Considerations

Consult the official Texas Instruments substitution guide for verified cross-reference parts. Ensure any alternative component maintains compatibility with the specific DMD panel voltage and timing requirements. Verify package pinout equivalence if considering physical replacements.
