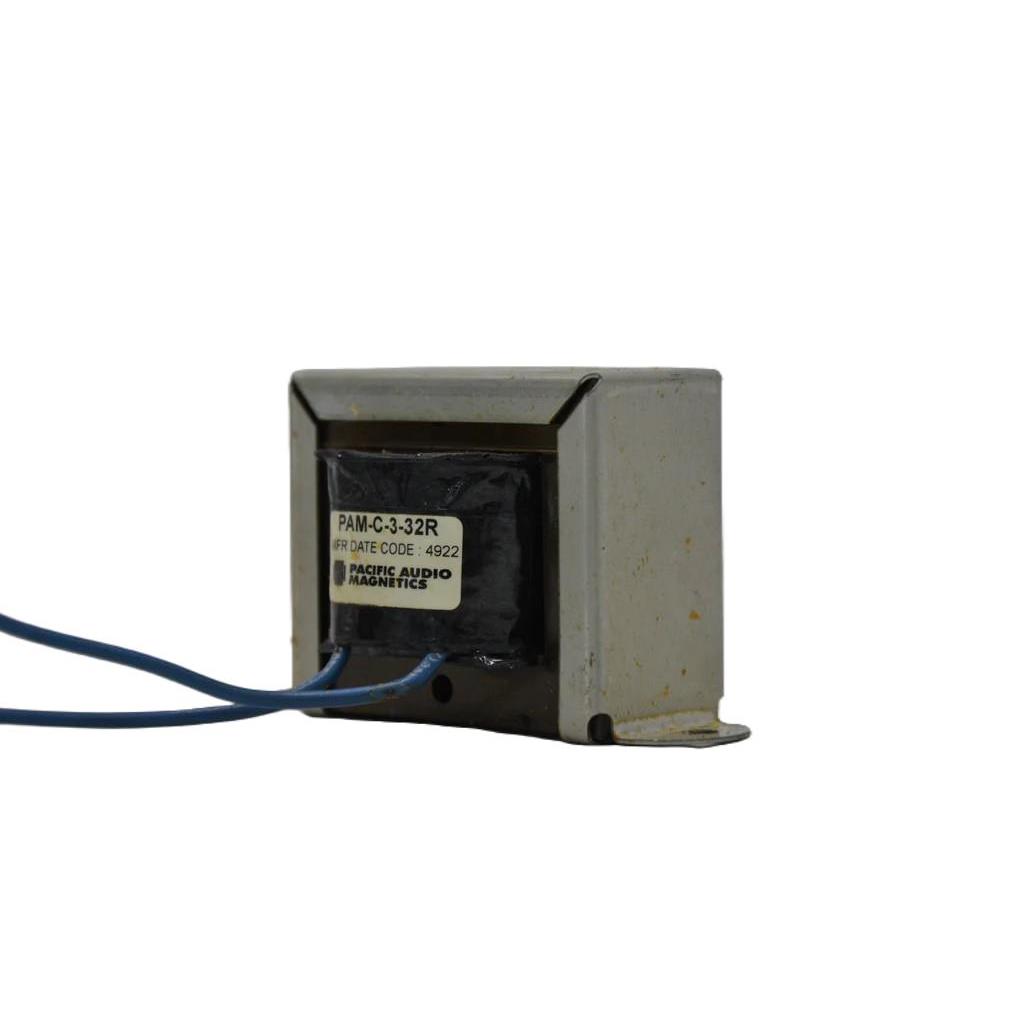

PAM-C-3-32R is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pacific Transformer. Its product description is Marshall 45/50/100 Plexi Choke. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for PAM-C-3-32R
- Description：Marshall 45/50/100 Plexi Choke
- Series：-
- Mfr：Pacific Transformer
- Package：Tape & Box (TB)
- Type：Wirewound
- Material - Core：-
- Inductance：4 H
- Tolerance：-
- Current Rating (Amps)：150 mA
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：115Ohm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-
- Inductance Frequency - Test：-
- Mounting Type：Chassis Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：-
- Height - Seated (Max)：1.921" (48.79mm)
- Features：-
Fixed Inductors datasheet and documents for PAM-C-3-32R
Fixed Inductors Overview
The PAM-C-3-32R is a vintage replica output transformer manufactured by Pacific Audio Magnetics. It is designed to replicate the specifications of the original Marshall Fender Tweed Princeton output transformer, specifically configured for an 8 Ohm load only. This component serves as a replacement part for guitar amplifier circuits, maintaining the electrical characteristics required for authentic tone reproduction in high-gain tube amplifier applications.
Fixed Inductors Feature Summary
- Vintage replication design matching original Marshall and Fender specifications
- Configured exclusively for 8 Ohm speaker loads
- Constructed for use in classic tube guitar amplifier circuits
Fixed Inductors Applications
- Marshall Plexi Super Lead amplifier restoration
- Fender Tweed Princeton amplifier repair
- Custom tube guitar amplifier builds requiring vintage-style magnetics
Fixed Inductors Procurement Notes
Verify that the target amplifier circuit requires an 8 Ohm output impedance match, as this unit is not suitable for other impedances. Confirm physical dimensions against the existing transformer to ensure proper fit within the chassis. Check for any necessary mounting hardware or wiring harness compatibility before purchase. Ensure the application involves tube-based amplification systems consistent with the vintage design intent.
Fixed Inductors Selection Notes
Select this component when restoring or building amplifiers that require exact vintage magnetic characteristics. It is appropriate for designs utilizing Marshall or Fender circuit topologies that specify an 8 Ohm secondary winding. Consider mechanical size constraints and lead wire length requirements during integration. This part is intended for specialized audio equipment rather than general-purpose electronics.
Fixed Inductors Part Context
Pacific Audio Magnetics specializes in custom transformers and inductors for the guitar amplifier industry. The PAM-C-3-32R belongs to their line of vintage replica components, which are engineered to replace obsolete or damaged parts in iconic amplifier models. These products support the maintenance and reconstruction of historical audio equipment.
Fixed Inductors Replacement Considerations
This unit replaces the original Marshall PN: 784-103 output transformer. Verify compatibility with the specific amplifier model's power supply and speaker configuration.
