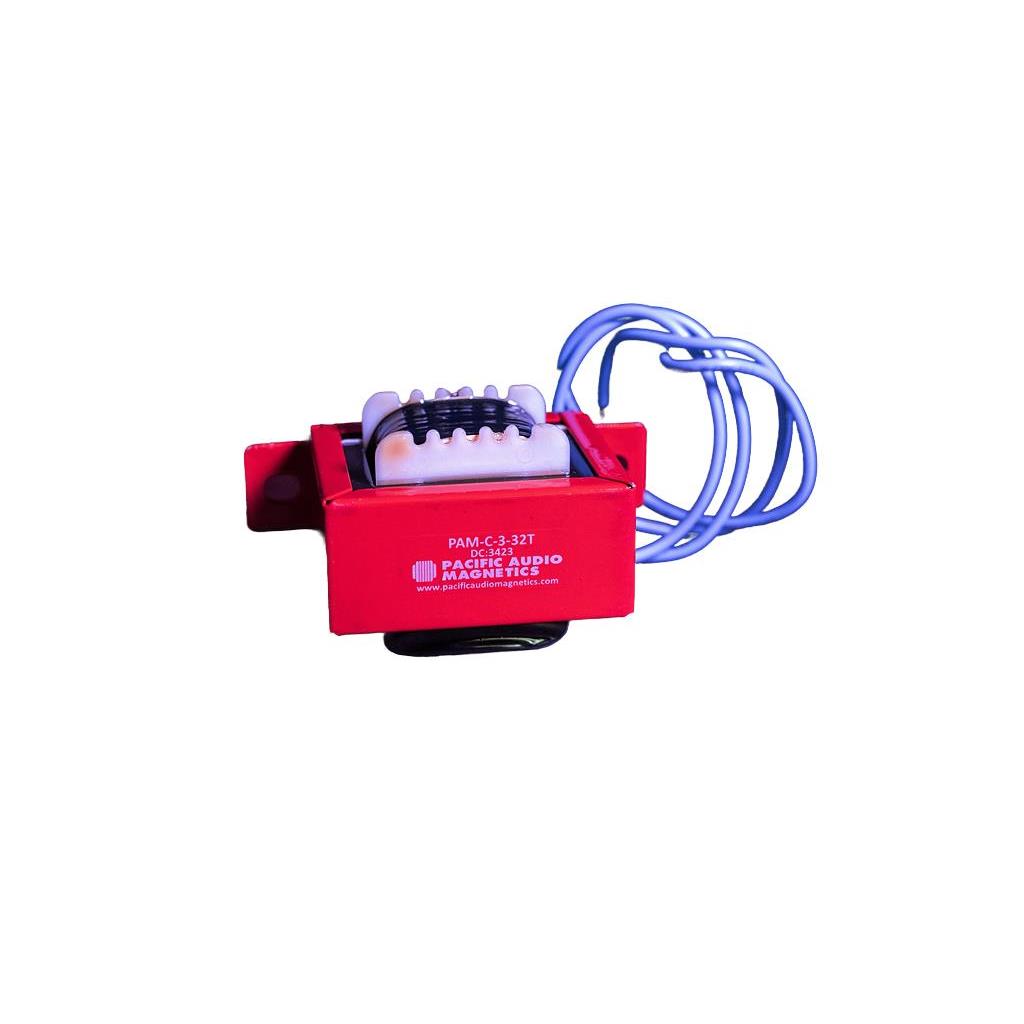

PAM-C-3-32T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pacific Transformer. Its product description is Marshall 45/50/100 Plexi Choke (. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for PAM-C-3-32T
- Description：Marshall 45/50/100 Plexi Choke (
- Series：-
- Mfr：Pacific Transformer
- Package：Tape & Box (TB)
- Type：Wirewound
- Material - Core：-
- Inductance：4 H
- Tolerance：-
- Current Rating (Amps)：150 mA
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：115Ohm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-
- Inductance Frequency - Test：-
- Mounting Type：Chassis Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：-
- Height - Seated (Max)：1.921" (48.79mm)
- Features：-
Fixed Inductors datasheet and documents for PAM-C-3-32T
Fixed Inductors Overview
The PAM-C-3-32T is a fixed inductor manufactured by Pacific Transformer. It features an unshielded wirewound construction with nonstandard physical dimensions. The component has an inductance of 4 H and a maximum current rating of 150 mA. Its DC resistance is specified as 115 Ohm.
Fixed Inductors Feature Summary
- Unshielded wirewound design for specific magnetic field requirements
- High inductance value suitable for filtering applications
- Nonstandard form factor allowing custom mechanical integration
Fixed Inductors Applications
- Vintage Marshall amplifier replication projects
- Custom tube amplifier circuitry
- Audio signal processing stages requiring high inductance
Fixed Inductors Procurement Notes
Verify the exact physical dimensions against the target chassis layout, as the nonstandard package may not fit standard mounting holes. Confirm that the 150 mA current rating meets the peak load requirements of the specific circuit application to prevent saturation or overheating during operation.
Fixed Inductors Selection Notes
Select this component when a high inductance value of 4 H is required in a compact, unshielded form factor. Consider the 115 Ohm DC resistance impact on voltage drop within the circuit. Ensure the application does not require magnetic shielding, as this model is explicitly unshielded.
Fixed Inductors Part Context
This part belongs to Pacific Transformer's Vintage Replica Series, designed to replicate components used in iconic guitar amplifiers. It serves as a replacement or build component for restoring or constructing vintage-style audio equipment, specifically associated with Marshall amplifier designs.
Fixed Inductors Replacement Considerations
The PAM-C-3-32R is a related variant from the same series. Verify if the R suffix denotes a different lead configuration or tolerance while maintaining identical electrical specifications before substitution.
