PAM-C-4-10T

Fixed Inductors Overview

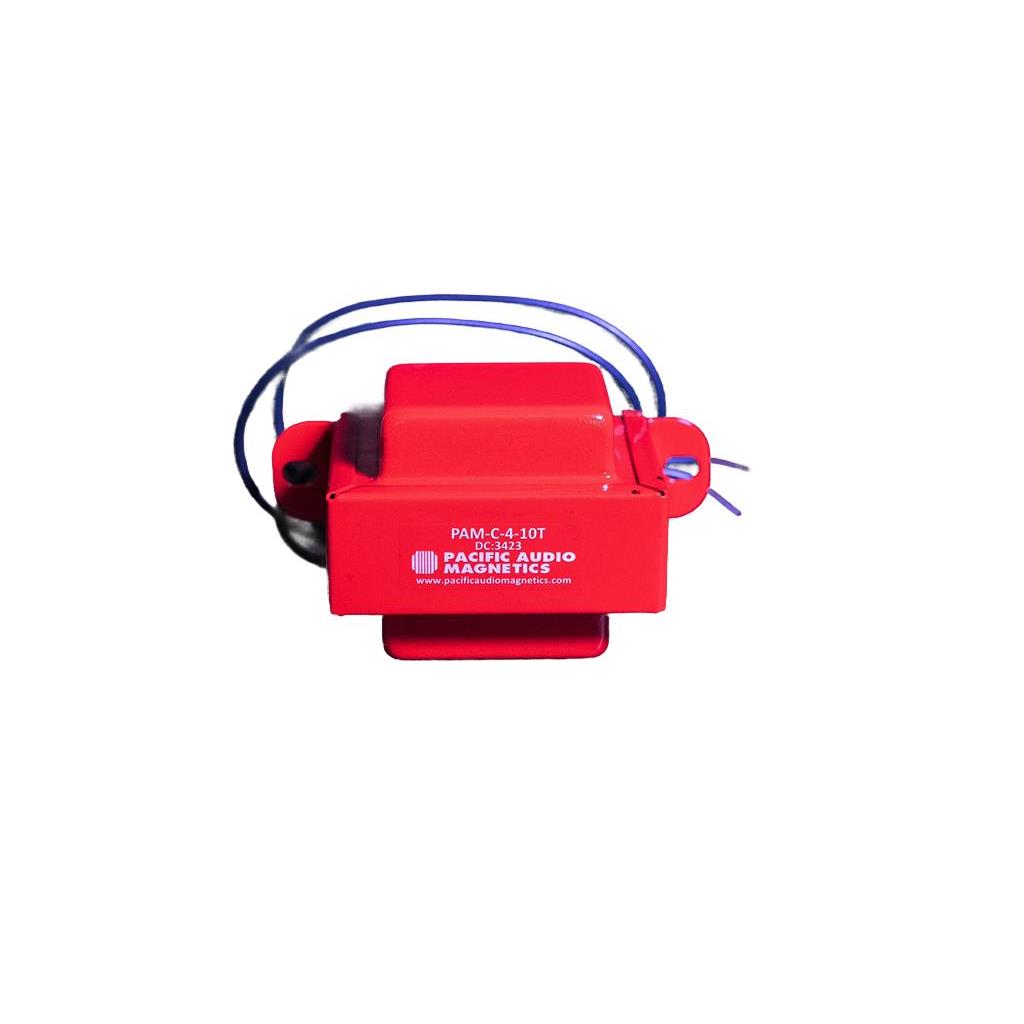

The PAM-C-4-10T is a fixed wirewound inductor manufactured by Pacific Transformer. It features an inductance of 4 H and a maximum current rating of 90 mA. The component exhibits a DC resistance of 105 Ohms. This unshielded unit utilizes a nonstandard physical form factor designed for specific integration requirements within electronic circuits.

Fixed Inductors Feature Summary

• Unshielded wirewound construction
• High inductance value of 4 H
• Nonstandard package configuration

Fixed Inductors Applications

• Vintage audio equipment restoration
• Tube amplifier circuitry
• Custom magnetic component design

Fixed Inductors Procurement Notes

Verify the exact physical dimensions against the official datasheet before integration, as the nonstandard package may require custom mounting solutions. Confirm that the 90 mA current rating aligns with your circuit's operational limits to prevent saturation or thermal issues during procurement validation.

Fixed Inductors Selection Notes

Select this component when a high inductance value is required in a compact, unshielded form factor. Ensure the application can accommodate the nonstandard footprint and that the 105 Ohm DC resistance fits within the circuit's impedance budget without affecting signal integrity.

Fixed Inductors Part Context

This inductor belongs to Pacific Transformer's range of components often utilized in vintage replica audio projects. It serves as a specialized passive element for filtering or energy storage in low-current analog applications, distinct from standard shielded industrial inductors.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Due to the unique combination of 4 H inductance, 90 mA rating, and nonstandard packaging, alternative components must be evaluated individually for electrical compatibility and mechanical fit.
