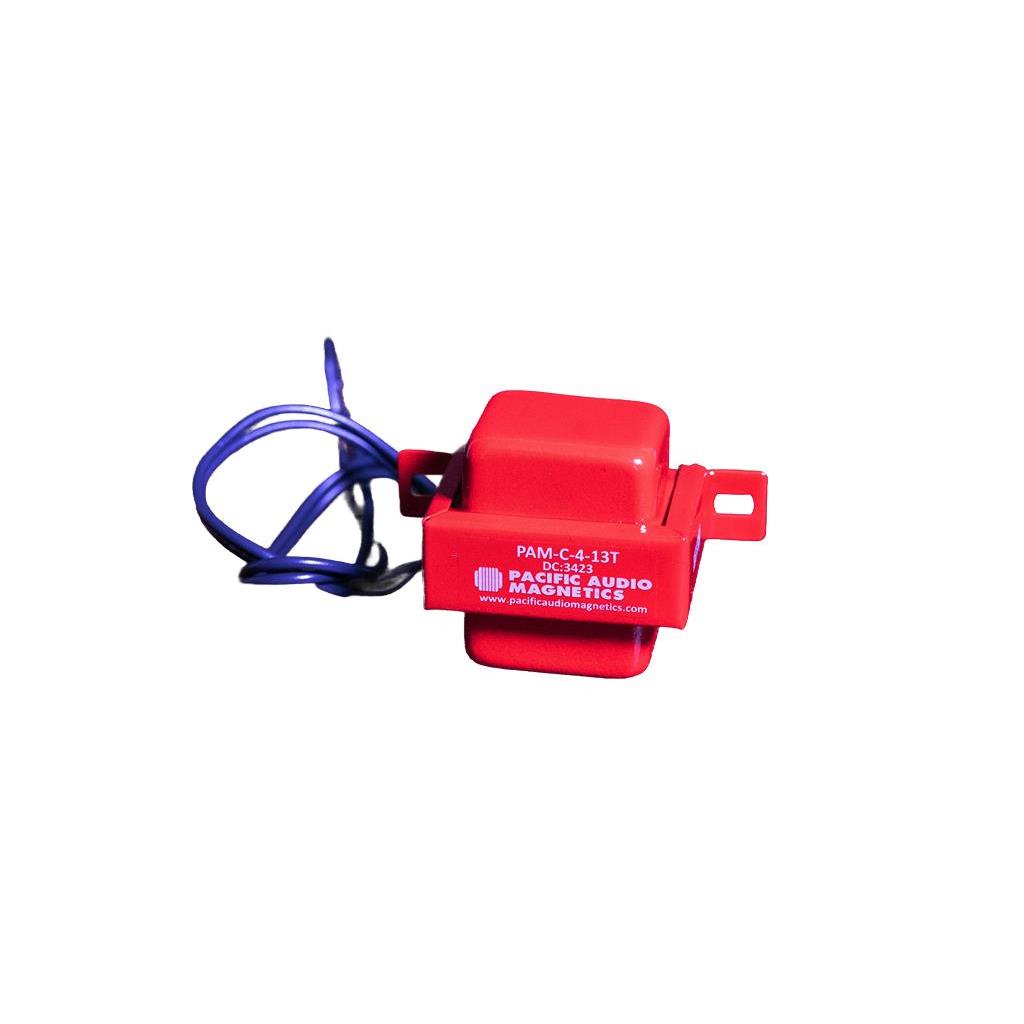

PAM-C-4-13T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pacific Transformer. Its product description is Fender 4Hy, 50mA Choke (RED Seri. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for PAM-C-4-13T
- Description：Fender 4Hy, 50mA Choke (RED Seri
- Series：-
- Mfr：Pacific Transformer
- Package：Tape & Box (TB)
- Type：Wirewound
- Material - Core：-
- Inductance：4 H
- Tolerance：-
- Current Rating (Amps)：50 mA
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：150Ohm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-
- Inductance Frequency - Test：-
- Mounting Type：Chassis Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：1.750" L x 1.375" W (44.45mm x 34.93mm)
- Height - Seated (Max)：1.858" (47.19mm)
- Features：-
Fixed Inductors datasheet and documents for PAM-C-4-13T
Fixed Inductors Overview
The PAM-C-4-13T is a fixed wirewound inductor manufactured by Pacific Transformer. It features an unshielded design with a nominal inductance of 4 H and a maximum DC current rating of 50 mA. The component exhibits a DC resistance of 150 Ohms and utilizes a nonstandard physical form factor. This magnetic component is engineered for specific audio circuit applications, providing necessary impedance characteristics within the designated operational parameters.
Fixed Inductors Feature Summary
- Unshielded wirewound construction for defined magnetic field exposure
- High inductance value suitable for audio frequency filtering
- Nonstandard package geometry for custom chassis integration
Fixed Inductors Applications
- Guitar amplifier output circuits
- Audio signal processing stages
- Vintage amplifier restoration projects
Fixed Inductors Procurement Notes
Verify the exact physical dimensions against the official datasheet before integration, as the nonstandard package may require custom mounting solutions. Confirm that the 50 mA current rating aligns with the peak load requirements of the target circuit to prevent saturation or thermal issues during operation.
Fixed Inductors Selection Notes
Select this component when a high-inductance, unshielded wirewound solution is required for audio applications. Consider the 150 Ohm DC resistance impact on circuit efficiency. Ensure the nonstandard footprint fits the available board space or chassis layout constraints compared to standard axial or radial packages.
Fixed Inductors Part Context
Pacific Transformer specializes in designing custom transformers and magnetic components for the guitar amplifier industry. The PAM-C-4-13T falls under their range of magnetics used in iconic amplifier designs. This part represents a specialized passive component rather than a general-purpose industrial inductor, tailored for niche audio electronics.
Fixed Inductors Replacement Considerations
No public confirmed substitute part numbers are available. Due to the unique combination of 4 H inductance, 150 Ohm resistance, and nonstandard packaging, direct equivalents are unlikely. Custom winding services may be required if original stock is unavailable.
