Product Detailed Parameters
- Description：IC MTR DRV 2.8-5.5V U-FLGA1515-9
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Motor Type - Stepper：-
- Motor Type - AC, DC：ERM, LRA
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge (2)
- Interface：Analog, PWM
- Technology：NMOS, PMOS
- Step Resolution：-
- Applications：Mobile Communications
- Current - Output：-
- Voltage - Supply：2.8V ~ 5.5V
- Voltage - Load：2.8V ~ 5.5V
- Operating Temperature：-25°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：9-UFLGA
- Supplier Device Package：U-FLGA1515-9
- Grade：-
- Qualification：-
Download product information
Overview

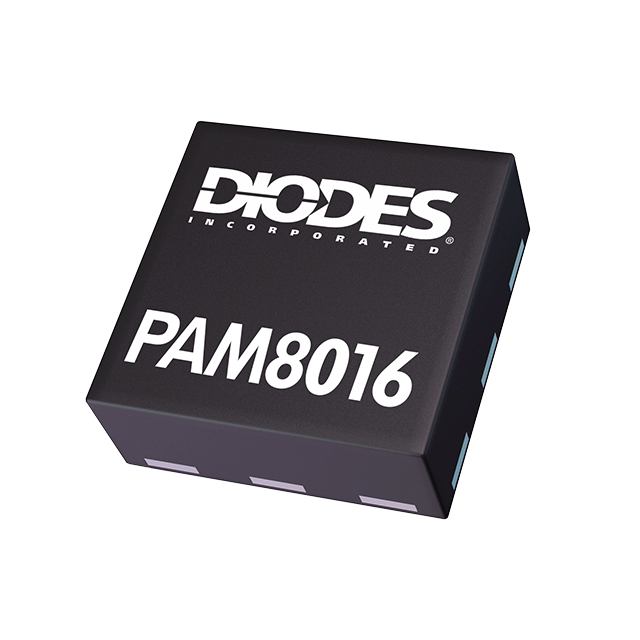

The PAM8016AKR is a Class-D audio amplifier and haptic driver manufactured by Diodes Incorporated. It operates within a supply voltage range of 2.8 V to 5.5 V and delivers 3 W of output power into a 4 Ohm load. The device features a THD+N of 0.17% and draws 5 mA of quiescent current. It supports both analog and PWM interfaces and includes shutdown functionality. The component is housed in a U-FLGA1515-9 package and functions as a fully integrated driver with control and power stages for ERM and LRA motors.
Feature Summary
- Fully integrated Class-D architecture combining control logic and power stages
- Supports dual interface modes including analog input and pulse-width modulation
- Built-in protection mechanisms including thermal shutdown and over-current protection
- Designed for low-power operation with automatic standby and wake-up capabilities
Applications
- Mobile communication devices
- Haptic feedback systems using ERM or LRA actuators
- Portable consumer electronics requiring compact audio amplification
Procurement Notes
Verify the specific suffix against official Diodes Incorporated documentation to confirm pinout and electrical characteristics. Ensure compatibility with the target PCB footprint, specifically the U-FLGA1515-9 package dimensions. Confirm RoHS3 compliance status if required by regional regulations. Cross-reference the manufacturer part number with authorized distributor catalogs to avoid counterfeit components.
Selection Notes
Select this component when a single-channel solution is needed for both audio playback and haptic vibration generation. It is suitable for designs constrained by space due to its small form factor. Consider the 2.8 V minimum operating voltage for battery-powered applications. Verify that the load impedance matches the 4 Ohm or 8 Ohm specifications for optimal performance.
Part Context
This component belongs to the PAM8016 series from Diodes Incorporated, which focuses on efficient audio and motor driving solutions. It shares the U-FLGA1515-9 packaging family with other members like the PAM8013AKR. The series targets mobile and portable markets where size and power efficiency are critical design parameters.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material.
