Product Detailed Parameters
- Description：LINE FILTER 76VDC 20A TH
- Series：PAN
- Mfr：TDK-Lambda
- Package：Bulk
- Filter Type：DC
- Configuration：-
- Voltage - Rated DC：76V
- Voltage - Rated AC：-
- Current：20 A
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：CSA, EN, UL
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Through Hole
- Termination Style：PC Pins
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

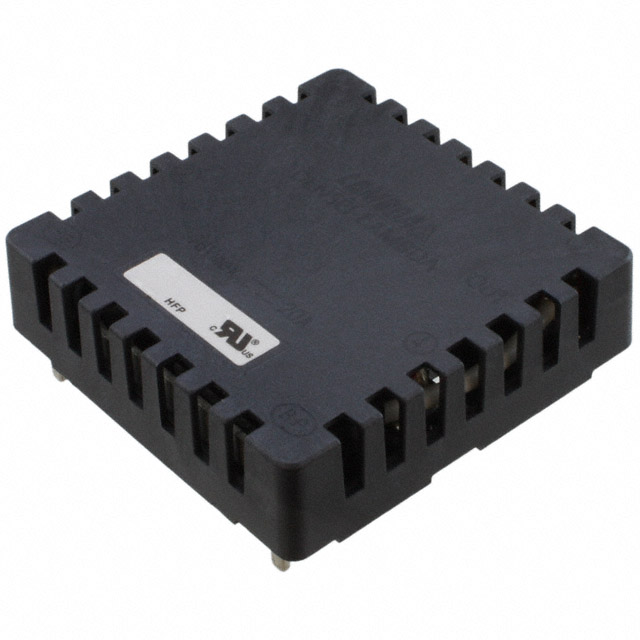

The TDK-Lambda PAN4820 is a DC EMI/EMC line filter rated for 76V DC and 20A. Designed for through-hole mounting, it suppresses noise in industrial, telecom, and embedded systems. It features full safety certifications and compact dimensions of 35.6mm length, 25.6mm width, and 13mm height.
Feature Summary
- Suppresses electromagnetic interference in DC power lines
- Supports through-hole installation with solder pin termination
- Complies with comprehensive safety certification standards
Applications
- Industrial equipment noise suppression
- Telecommunications system filtering
- Embedded system EMC compliance
Procurement Notes
Verify the specific datasheet revision (e.g., G041-01-01C) to ensure compatibility with current design requirements. Confirm that the 76V DC rating and 20A current capacity align with the target circuit parameters before procurement.
Selection Notes
Select this component when a compact, through-hole DC filter is required for 76V systems. Ensure the application environment does not exceed the rated voltage or current limits. Verify space constraints against the specified physical dimensions.
Part Context
This component belongs to the TDK-Lambda DC power line filter series. It is engineered specifically for high-current DC applications requiring effective EMI/EMC mitigation without occupying significant board space.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official TDK-Lambda resources for equivalent alternatives if this model is discontinued.
FAQ
What is the maximum operating voltage for the PAN4820?
The PAN4820 is rated for a maximum of 76V DC.
How is the PAN4820 mounted?
It utilizes a through-hole mounting style with solder pin termination.
