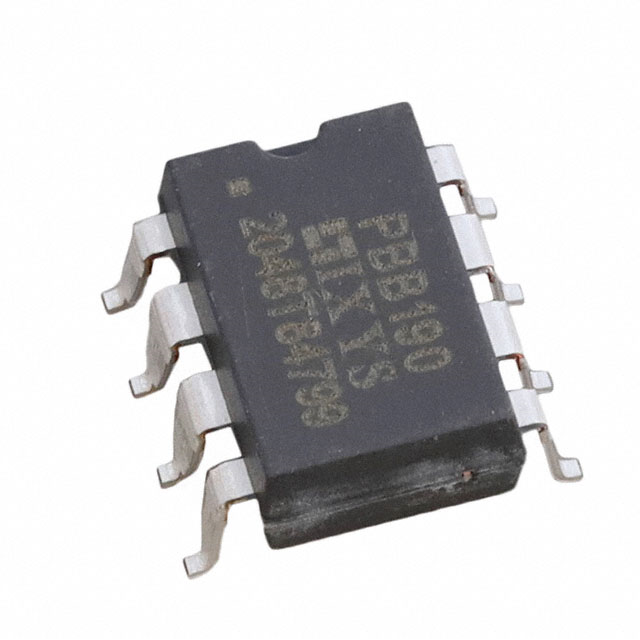

PBB190S

PBB190S is listed in the Solid State Relays (SSR) range at ChipApex. The manufacturer field lists Littelfuse Inc.. Its product description is SSR RELAY SPST-NC 130MA 0-400V. Review the specifications below when checking this part for your BOM.

Solid State Relays (SSR) specifications for PBB190S

• Description：SSR RELAY SPST-NC 130MA 0-400V
• Series：PBB, OptoMOS®
• Mfr：Littelfuse Inc.
• Package：Tube
• Mounting Type：Surface Mount
• Circuit：SPST-NC (1 Form B)
• Output Type：AC, DC
• Voltage - Input：1.36VDC
• Voltage - Load：0 V ~ 400 V
• Load Current：130 mA
• Termination Style：Gull Wing
• Package / Case：8-SMD (0.300", 7.62mm)
• Supplier Device Package：8-SMD
• On-State Resistance (Max)：25 Ohms
• Grade：-
• Qualification：-
• Operating Temperature：-40°C ~ 85°C
• Approval Agency：CSA, EN, UL

Solid State Relays (SSR) datasheet and documents for PBB190S
