PBC32SABN

Headers, Male Pins Overview

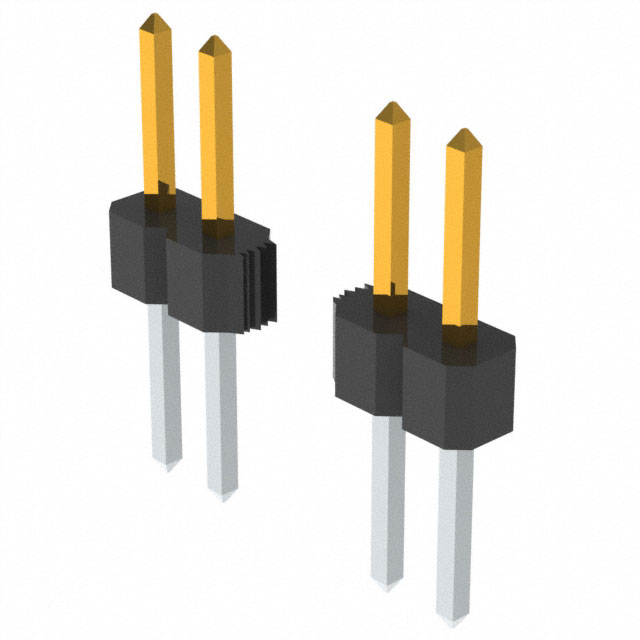

The PBC32SABN is a male breakaway header connector manufactured by Sullins Connector Solutions. It features 32 positions arranged in a single row with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, the connector utilizes phosphor bronze contacts with gold plating on the mating interface and tin plating on the tail. The housing is constructed from black polybutylene terephthalate (PBT) rated UL94 V-0. It supports a maximum current of 3A and operates within a temperature range of -65°C to 125°C.

Headers, Male Pins Feature Summary

• Breakaway design allows for separation into individual rows or smaller segments during assembly.
• Gold-plated mating contacts ensure reliable signal transmission and corrosion resistance.
• Vertical orientation facilitates direct board-to-board or cable connections.

Headers, Male Pins Applications

• Industrial control systems requiring modular interconnects
• Test and measurement equipment interfaces
• General-purpose electronic assemblies needing flexible routing

Headers, Male Pins Procurement Notes

Verify that the specific lot configuration matches the required segment count, as this component is supplied as a two-piece lot. Confirm that the vertical pin length and insulation height are compatible with the target PCB stack-up. Ensure that the tin-plated tails are suitable for the intended soldering process parameters.

Headers, Male Pins Selection Notes

Select this model when a single-row, 32-position male header with a 2.54mm pitch is required. The breakaway feature is essential if the final assembly requires splitting the connector into separate sections. Verify that the 3A current rating and 125°C temperature limit meet the operational requirements of the application environment.

Headers, Male Pins Part Context

This component belongs to the PBC series of male breakaway headers from Sullins Connector Solutions. The series offers various position counts and pitch options, all sharing the same fundamental breakaway architecture and material specifications. This specific part represents the 32-position variant within the standard vertical configuration.

Headers, Male Pins Replacement Considerations

Direct substitutes include other manufacturers' 32-position, 2.54mm pitch male headers with breakaway capabilities. Cross-reference dimensions such as insulation height and contact length to ensure mechanical compatibility. Verify that alternative parts meet the same UL94 V-0 flammability rating and current carrying capacity.
