PBLS1503V,115

Overview

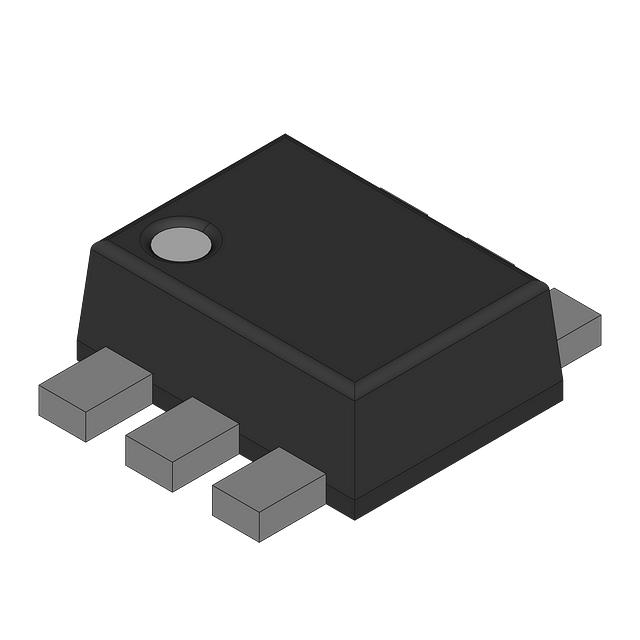

The PBLS1503V,115 is a dual digital transistor from Nexperia featuring one NPN and one PNP resistor-equipped transistor (RET) in a single SOT-457 (SC-74) surface-mount package. It provides a collector-emitter voltage of 50 V for the NPN device and 40 V for the PNP device. The unit integrates typical base resistors of 10 kOhms with a ratio of 1, supporting continuous collector currents up to 100 mA for the NPN and 500 mA for the PNP configurations. Designed for operation between -65°C and +150°C, it simplifies circuit design by reducing component count.

Feature Summary

• Dual configuration combining NPN and PNP transistor functions within a compact footprint
• Integrated bias resistors eliminate external components and simplify layout
• Low saturation voltage characteristics enhance switching efficiency
• AEC-Q101 qualified for automotive reliability standards

Applications

• Automotive LIN bus interface protection
• General-purpose switching applications
• Load switch control circuits
• Peripheral driver interfaces

Procurement Notes

Verify the specific suffix '115' against the manufacturer's latest datasheet to confirm packaging details and tape-and-reel specifications. Ensure compatibility with standard SMD reflow profiles and check for any recent Product Change Notifications (PCN) that may affect material composition or assembly locations before finalizing procurement orders.

Selection Notes

Select this component when space constraints require a dual-transistor solution with integrated biasing. Compare the 10 kOhm internal resistance values against the driving source impedance to ensure adequate base current. Verify that the 50 V/40 V voltage ratings exceed the maximum circuit voltages under all operating conditions.

Part Context

This part belongs to the Nexperia PBLS series of pre-biased transistors, designed to replace multiple discrete components. It serves as a direct replacement for similar dual RET packages in consumer electronics and automotive modules where board real estate is limited and consistent switching performance is required across temperature variations.

Replacement Considerations

Check for pin-compatible alternatives such as the PBLS4003D or PBLS6003D if different current ratings are needed. Confirm that substitute parts maintain the same SOT-457 footprint and electrical characteristics to avoid redesigning the PCB layout.
