PBY160808T-601Y-N

Overview

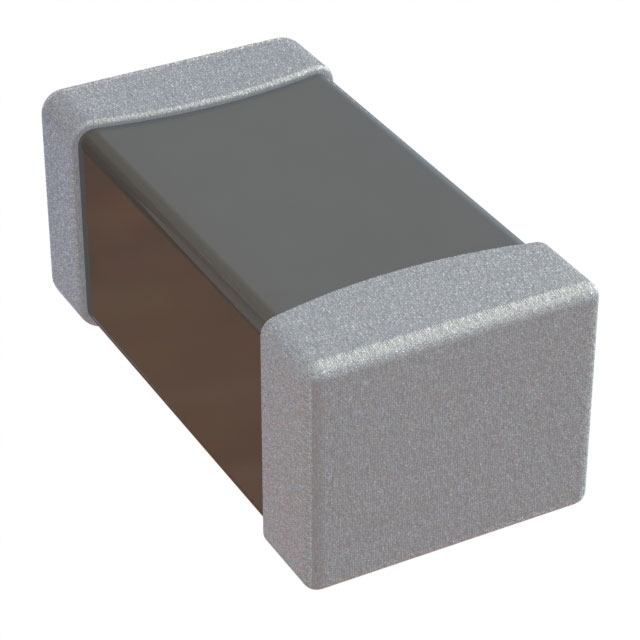

The PBY160808T-601Y-N is a single-channel multilayer ferrite chip bead manufactured by Pulse Electronics. It features a 0603 (1608 metric) surface-mount package with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height. The component provides an impedance of 600 Ohms at a test frequency of 100 MHz with a tolerance of 25%. It supports a maximum DC current of 1 A and has a maximum DC resistance of 0.2 Ohms. The device operates within a temperature range of -55°C to +155°C.

Feature Summary

• Provides electromagnetic interference suppression through high-impedance characteristics in the signal path.
• Utilizes a shielded multilayer construction for reliable performance in compact designs.
• Designed for surface-mount technology integration on printed circuit boards.

Applications

• EMI suppression in power lines under 1 GHz
• Signal integrity management in high-speed digital circuits
• Noise filtering in portable electronic devices

Procurement Notes

Verify the specific ordering suffix and packaging configuration, such as reel or cut tape, against official distributor documentation before procurement. Confirm that the requested quantity aligns with the manufacturer's standard factory pack sizes to ensure availability. Cross-reference the part number with the latest RoHS compliance status and any recent product change notices issued by Pulse Electronics to guarantee material consistency and regulatory adherence during the sourcing process.

Selection Notes

Select this component when a 600 Ohm impedance at 100 MHz is required for noise attenuation. Ensure the circuit design accommodates the 1 A maximum DC current rating without exceeding thermal limits. Verify that the 0603 footprint matches the PCB layout constraints. Consider the wide operating temperature range if the application involves extreme environmental conditions compared to standard commercial grade components.

Part Context

This ferrite bead belongs to the PB series from Pulse Electronics, which focuses on EMI suppression solutions. The 0603 form factor allows for dense board placement in modern electronics. As a passive component, it complements active filtering stages by attenuating high-frequency noise across power and data lines, contributing to overall system electromagnetic compatibility.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult official manufacturer cross-reference lists for verified alternatives.
