PC27.07.0100A

Antennas RF Overview

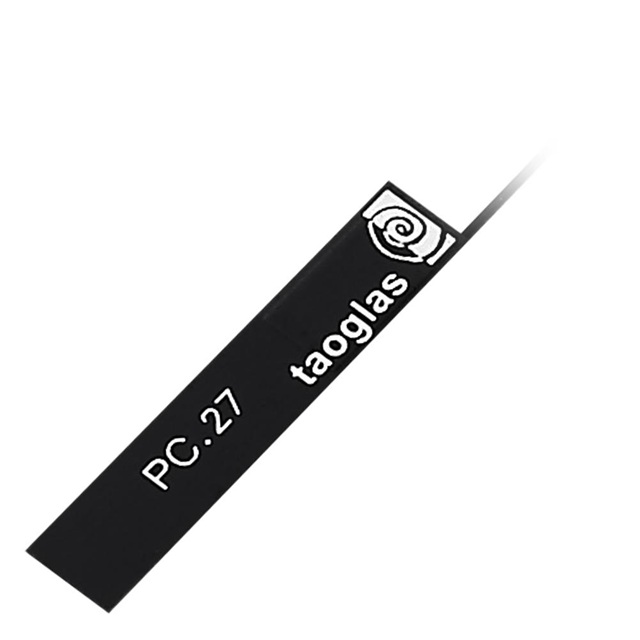

The PC27.07.0100A is a miniature FR4 PCB antenna designed for 2G cellular applications, specifically supporting quad-band GSM frequencies of 850, 900, 1800, and 1900 MHz. It features a flat patch design with dimensions of 34mm x 7mm x 0.8mm. The component includes a 100mm cable with an I-PEX MHF I (U.FL compatible) connector, having a diameter of 1.13mm. Key electrical parameters include a center frequency range covering 892MHz to 1.9GHz, an impedance of 50Ω, and gain values of 0.6dBi and -4.1dBi at respective bands.

Antennas RF Feature Summary

• Miniature form factor suitable for space-constrained IoT devices
• Quad-band GSM coverage for global 2G compatibility
• Integrated 100mm cable with standard I-PEX connector

Antennas RF Applications

• IoT modules requiring 2G connectivity
• M2M communication devices
• Embedded GSM tracking systems

Antennas RF Procurement Notes

Verify the specific I-PEX connector type and cable length against project requirements. Confirm that the FR4 substrate meets environmental standards for the intended deployment. Ensure the operating frequency bands align with local network regulations. Check lead times as manufacturing schedules may vary.

Antennas RF Selection Notes

Select this antenna when compact size is critical for 2G GSM integration. Consider the 100mm cable length for placement flexibility within the device enclosure. Evaluate the gain specifications relative to the host RF circuit performance. Ensure compatibility with the I-PEX MHF I interface on the mainboard.

Antennas RF Part Context

This component belongs to the Taoglas PC27 series, which specializes in miniature antennas for embedded applications. The series focuses on providing reliable RF solutions for IoT and M2M devices where space is limited. The PC27.07.0100A variant specifically targets GSM networks, offering a balance between size and performance for legacy 2G systems.

Antennas RF Replacement Considerations

Consult official Taoglas documentation for direct substitutes within the PC27 series. Verify pinout and connector compatibility before considering alternative brands. Ensure any replacement maintains the same frequency coverage and physical dimensions.
