PC28F00BM29EWHA

Memory IC Overview

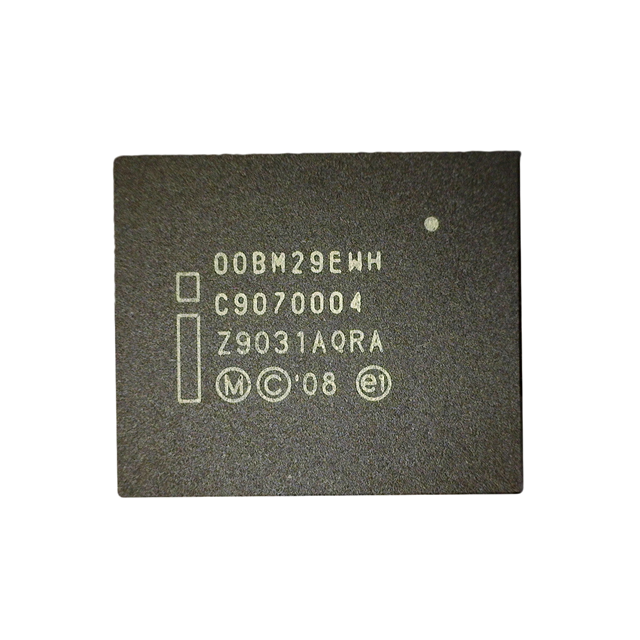

The PC28F00BM29EWHA is a NOR flash memory component manufactured by Micron Technology. It features a storage capacity of 1 Gbit and utilizes a parallel interface with asynchronous timing. The device supports an organization of 128 M x 8 or 64 M x 16, offering flexible data bus widths of 8-bit or 16-bit. It operates within a supply voltage range of 2.7 V to 3.6 V and has a maximum active read current of 50 mA. The component is housed in a BGA-64 package and functions reliably across a temperature range of -40°C to +85°C.

Memory IC Feature Summary

• Supports simultaneous read and write operations for efficient code execution
• Provides fast random access capabilities suitable for direct code execution from memory
• Features symmetric block organization for uniform data protection

Memory IC Applications

• Embedded systems requiring direct code execution
• Industrial control applications
• Automotive electronics systems

Memory IC Procurement Notes

Verify the specific suffix against official Micron documentation to confirm package type and temperature grade. Ensure compatibility with existing board designs regarding pinout and voltage levels. Confirm RoHS compliance status through authorized channels. Request manufacturer datasheets for precise electrical characteristics before integration.

Memory IC Selection Notes

Select this component for designs requiring high-density NOR flash with parallel interface support. Consider the 64-pin BGA package for space-constrained applications. Evaluate the 100 ns access time against system performance requirements. Verify that the operating voltage range aligns with the target platform's power supply specifications.

Memory IC Part Context

This part belongs to the Micron M29EW series of NOR flash memories. The series is designed for embedded applications needing reliable non-volatile storage. It complements Micron's broader portfolio of legacy and modern memory solutions. The component supports standard industrial and automotive temperature ranges for diverse deployment scenarios.

Memory IC Replacement Considerations

Consult Micron's cross-reference tools for verified substitutes. Check for equivalent density and interface compatibility. Verify package dimensions and pin configurations match existing footprints. Review updated datasheets for any functional differences in newer revisions.
