PC357N0J000F

Transistor, Photovoltaic Output Optoisolators Overview

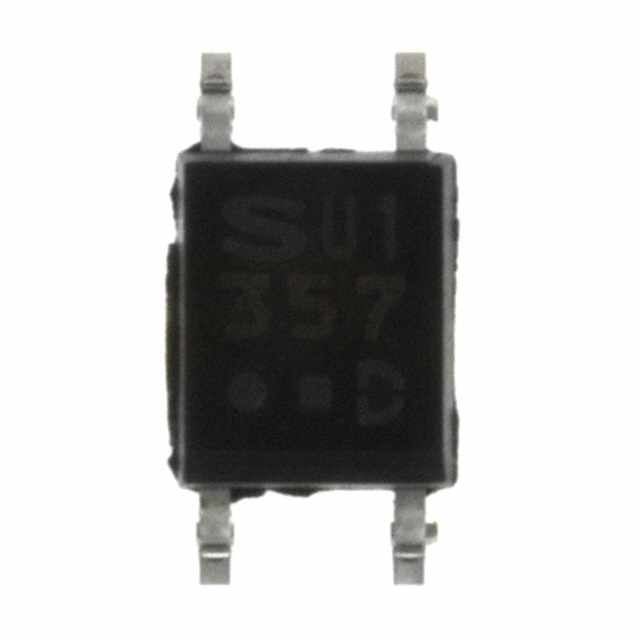

The PC357N0J000F is a single-channel transistor output optocoupler manufactured by Sharp Microelectronics. It features an NPN phototransistor output housed in a Mini-Flat-4 surface-mount package. Key electrical parameters include a maximum collector-emitter voltage of 80 V and a maximum collector current of 50 mA. The device provides an isolation voltage of 3750 Vrms. Typical switching characteristics consist of rise and fall times of 18 µs each. The forward voltage is specified at 1.4 V with a maximum forward current of 50 mA. Power dissipation is rated at 170 mW, and the unit operates within a temperature range of -30°C to +100°C.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• Provides high-voltage electrical isolation between input and output circuits via optical coupling.
• Features fast switching performance with symmetric rise and fall times for signal integrity.
• Utilizes a compact Mini-Flat-4 surface-mount package for efficient PCB space utilization.

Transistor, Photovoltaic Output Optoisolators Applications

• Industrial control systems requiring galvanic isolation
• Solid-state relay driver circuits
• Signal isolation in microprocessor-based interfaces

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm RoHS compliance status and specific CTR ranking requirements against project specifications. Ensure storage conditions adhere to moisture sensitivity levels defined in the datasheet to maintain reliability prior to assembly.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high isolation voltage and moderate speed are required in a small form factor. Compare against PC357N9J000F if higher current transfer ratio ranking is necessary. Evaluate thermal management needs given the 170 mW power dissipation limit in enclosed environments.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the PC357NJ0000F series of transistor output optocouplers from Sharp Microelectronics. The series offers various current transfer ratio rankings to suit different gain requirements while maintaining consistent electrical characteristics and packaging standards across the family.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

PC357N9J000F serves as a direct substitute within the same series, offering identical electrical specifications but with a different current transfer ratio ranking. Verify pinout compatibility and thermal performance before substitution.
