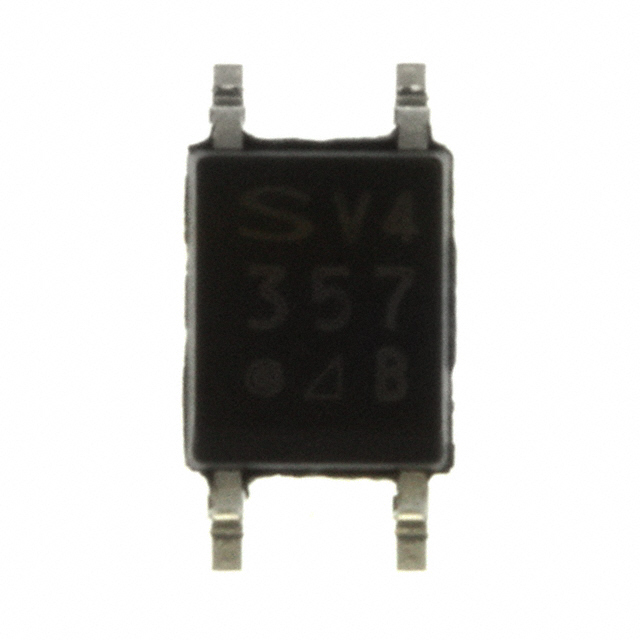

PC357N6TJ00F

Transistor, Photovoltaic Output Optoisolators Overview

The PC357N6TJ00F is a transistor output optocoupler from Sharp Microelectronics, featuring a 4-pin Mini-Flat (BESOP) surface-mount package. It provides an isolation voltage of 3.75kVrms and operates within a temperature range of -30°C to +100°C. The device supports a maximum forward current of 50mA with a typical forward voltage of 1.4V. Electrical performance includes a typical rise time of 18μs and fall time of 18μs. The Current Transfer Ratio (CTR) is ranked between 130% and 400%. It complies with UL1577 and RoHS standards.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• High-speed switching capability with symmetric rise and fall times for reliable signal transmission
• Robust electrical isolation rated at 3.75kVrms for safety-critical applications
• Wide operating temperature range suitable for demanding industrial environments
• Compact surface-mount packaging designed for automated assembly processes

Transistor, Photovoltaic Output Optoisolators Applications

• Industrial automation control systems
• Power supply feedback loops
• Signal isolation in microprocessor interfaces

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific CTR ranking suffix against the manufacturer's datasheet to ensure it matches the required gain characteristics for your circuit design. Confirm that the 4-pin Mini-Flat footprint aligns with your PCB layout constraints. Ensure compliance with RoHS directives if applicable to your region. Cross-reference the UL certification number for safety approval requirements in your target market.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high-speed digital isolation is required alongside moderate current transfer ratios. The 130-400% CTR range offers flexibility for various logic levels. Consider the 4-pin BESOP package for space-constrained designs requiring surface-mount technology. Evaluate the 3.75kV isolation rating against the system's voltage stress requirements to ensure adequate safety margins.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the PC357NJ0000F series, which focuses on high-speed transistor output optocouplers. The series is characterized by fast switching speeds and high CTR options. It serves as a bridge between low-voltage control circuits and higher-voltage load sides, ensuring galvanic separation while maintaining signal integrity in noisy environments.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Check for direct substitutes within the PC357N series with different CTR rankings, such as PC357N2J000F or PC357N3J000F, if gain requirements differ. Verify pinout compatibility before substituting with other 4-pin mini-flat optocouplers from different manufacturers.
