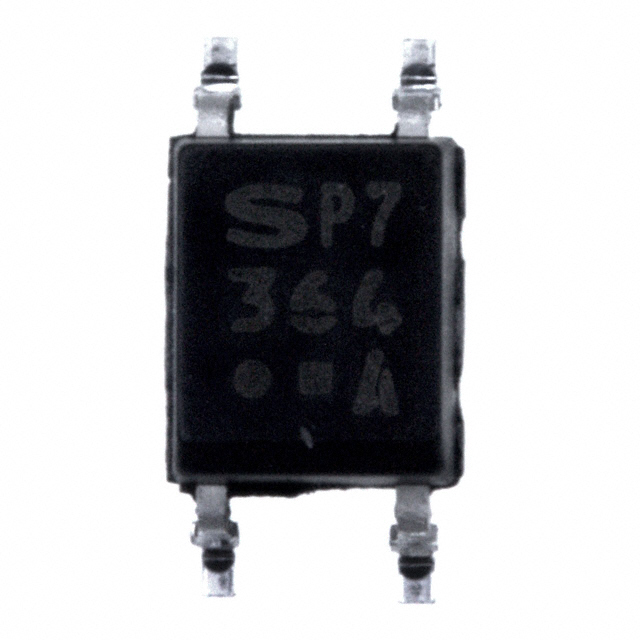

PC364N1

$0.30

Description：OPTOISO 3.75KV TRANS 4-MINI-FLAT
Series：-
Mfr：Sharp Microelectronics
Package：Tape & Reel (TR)

SKU:b5f23daee104 Category: Transistor, Photovoltaic Output Optoisolators Brand: Sharp Microelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PC364N1 is listed in the Transistor, Photovoltaic Output Optoisolators range at ChipApex. The manufacturer field lists Sharp Microelectronics. Its product description is OPTOISO 3.75KV TRANS 4-MINI-FLAT. Review the specifications below when checking this part for your BOM.

Transistor, Photovoltaic Output Optoisolators specifications for PC364N1

Description：OPTOISO 3.75KV TRANS 4-MINI-FLAT
Series：-
Mfr：Sharp Microelectronics
Package：Tape & Reel (TR)
Number of Channels：1
Voltage - Isolation：3750Vrms
Current Transfer Ratio (Min)：100% @ 500µA
Current Transfer Ratio (Max)：300% @ 500µA
Turn On / Turn Off Time (Typ)：-
Rise / Fall Time (Typ)：4µs, 3µs
Input Type：AC, DC
Output Type：Transistor
Voltage - Output (Max)：80V
Current - Output / Channel：50mA
Voltage - Forward (Vf) (Typ)：1.2V
Current - DC Forward (If) (Max)：10 mA
Vce Saturation (Max)：200mV
Operating Temperature：-30°C ~ 100°C
Mounting Type：Surface Mount
Package / Case：4-SMD, Gull Wing
Supplier Device Package：4-Mini-Flat
Grade：-
Qualification：-

Transistor, Photovoltaic Output Optoisolators datasheet and documents for PC364N1

PC364N1

Transistor, Photovoltaic Output Optoisolators Overview

The PC364N1 is a single-channel transistor output optocoupler manufactured by Sharp Microelectronics. It features an NPN phototransistor output and utilizes a Mini-Flat 4-pin surface-mount package. The device provides high isolation with a rated insulation voltage of 3750 Vrms. Key electrical parameters include a maximum collector-emitter voltage of 80 V, a maximum continuous collector current of 1.5 mA, and a forward voltage of 1.4 V at 50 mA input current. The unit supports a power dissipation of 170 mW and operates within a temperature range of -30°C to +100°C.

Transistor, Photovoltaic Output Optoisolators Feature Summary

Provides galvanic isolation between input and output circuits via an internal LED and phototransistor structure.
Features a compact Mini-Flat SMD package designed for automated surface-mount assembly processes.
Delivers high dielectric strength suitable for separating high-voltage domains from low-voltage control logic.

Transistor, Photovoltaic Output Optoisolators Applications

Signal isolation in industrial control systems
Interface circuits for solid-state relays
Switching power supply feedback loops

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix designation against the manufacturer's official documentation to confirm pinout configuration and tape-and-reel specifications. Ensure that the procurement source provides valid RoHS compliance certificates and original manufacturer traceability records prior to purchase.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when a small form factor is required alongside robust isolation capabilities. Consider the 1.5 mA collector current limit for load driving requirements. Verify that the application voltage does not exceed the 80 V collector-emitter rating under all transient conditions.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to Sharp's PC series of optocouplers, which are widely utilized for signal transmission across isolated boundaries. The Mini-Flat packaging represents a modernization of traditional DIP formats, allowing for higher density on printed circuit boards while maintaining standard isolation performance metrics.
