PC364N1J000F

Transistor, Photovoltaic Output Optoisolators Overview

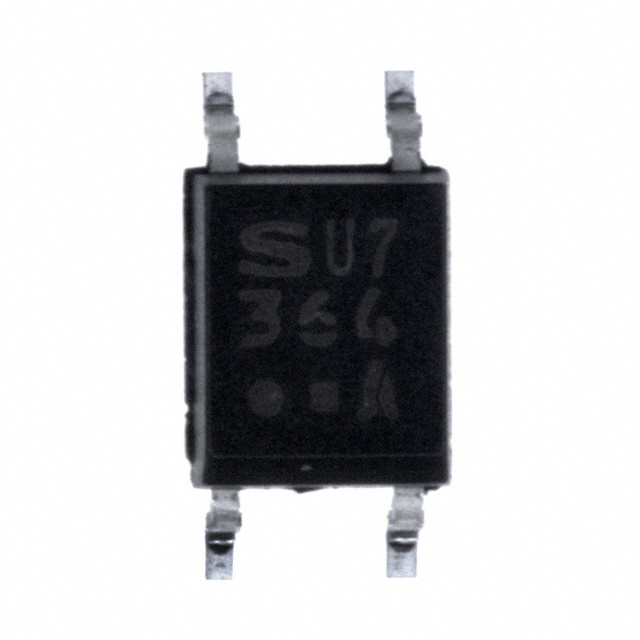

The PC364N1J000F is a single-channel AC input transistor output optocoupler manufactured by Sharp Microelectronics. It features a 4-SMD Mini-Flat package with 3750 Vrms isolation voltage. The device utilizes an internal LED for AC input detection and an NPN phototransistor output. Key electrical parameters include a maximum collector-emitter voltage of 80 V, a maximum collector current of 1.5 mA, and a power dissipation of 170 mW. It operates within a temperature range of -30°C to +100°C.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• AC input capability allows direct connection to alternating current signals without external rectification.

Transistor, Photovoltaic Output Optoisolators Applications

• Solid-state relay driver circuits
• AC mains status monitoring
• Industrial control interface isolation

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix J000F against the manufacturer's latest datasheet to confirm pinout and packaging variations. Ensure the selected component matches the required isolation voltage ratings for your circuit design. Cross-reference the ordering code with official Sharp Microelectronics documentation to avoid substitution errors.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when AC signal isolation is required in a compact SMD footprint. The integrated AC input structure simplifies design compared to standard DC optocouplers requiring external diodes. Consider the 1.5 mA collector current limit for load driving capabilities and verify thermal management within the specified operating temperature range.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to Sharp's PC364 series of AC input optocouplers. It is designed for applications requiring galvanic isolation between AC control signals and low-voltage DC logic circuits. The Mini-Flat package offers space-saving benefits for dense PCB layouts while maintaining high isolation performance standards.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Check for compatible AC input optocouplers from other manufacturers if supply constraints exist. Verify that substitute parts maintain equivalent isolation voltage and package dimensions. Ensure the replacement supports the same AC input frequency range and output current characteristics.
