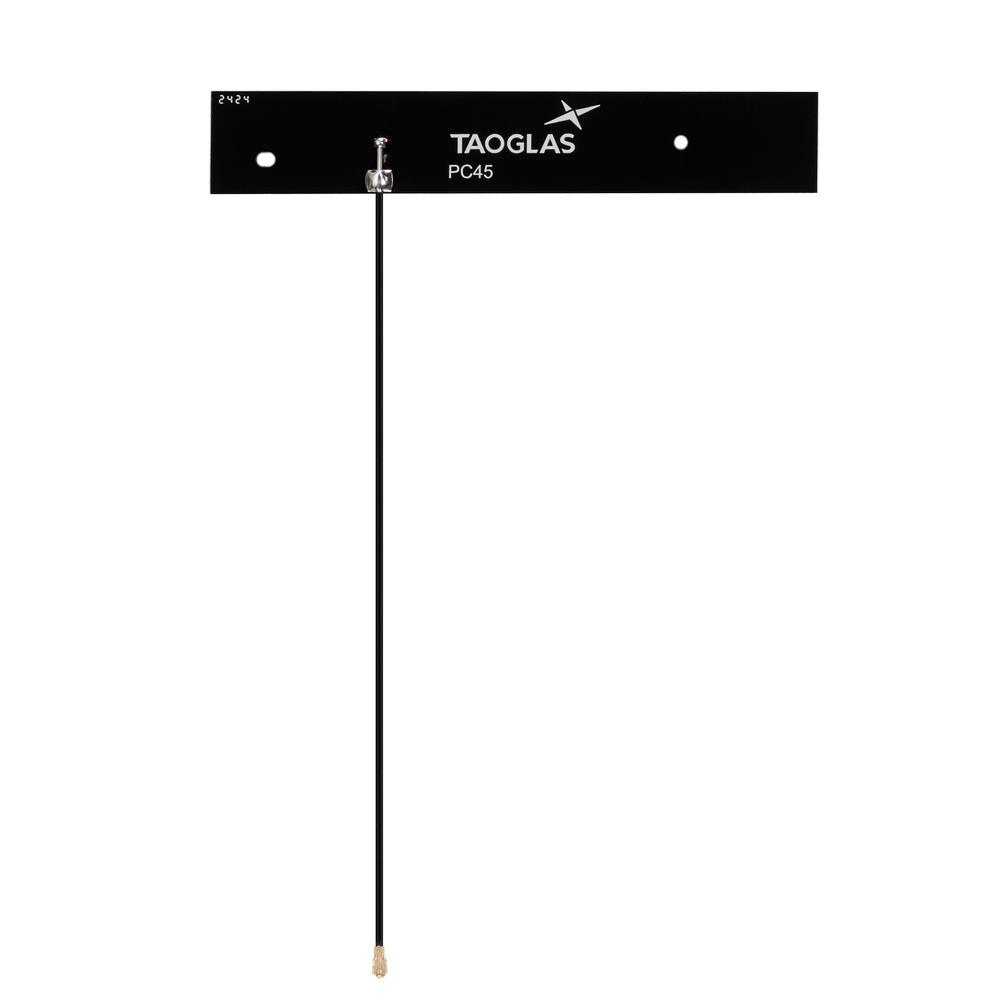

PC45.07.0150AQ

$3.54

Description：WIDEBAND CELLULAR 120X20MM PCB A
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:cff3947cb7e4 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PC45.07.0150AQ is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is WIDEBAND CELLULAR 120X20MM PCB A. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PC45.07.0150AQ

Description：WIDEBAND CELLULAR 120X20MM PCB A
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz
Frequency Range：617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Antenna Type：Module
Number of Bands：8
VSWR：-
Return Loss：-
Gain：0.19dBi, 2.3dBi, 2.06dBi, 2.54dBi, 3.95dBi, 3.86dBi, 5.66dBi, 3.79dBi
Features：Cable - 150mm
Termination：I-PEX MHFI
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.042" (1.06mm)
Applications：2G, 3G, 4G, 5G, Cat-M, IoT, LTE, NB-IoT, NR, Wi-Fi
Power - Max：2 W

Antennas RF datasheet and documents for PC45.07.0150AQ

PC45.07.0150AQ

Antennas RF Overview

The Taoglas PC45.07.0150AQ is a square multi-band PCB antenna designed for wideband cellular applications, covering frequencies from 600 MHz to 6 GHz. It supports 2G, 3G, 4G LTE, 5G NR, Cat-M, and NB-IoT standards. The component features an I-PEX MHF1 connector with a 150 mm black 1.13 cable. It operates within a temperature range of -40°C to +85°C and utilizes adhesive mounting on FR4 substrates.

Antennas RF Feature Summary

Supports ultra-wideband coverage across multiple cellular generations including 5G and IoT protocols
Compact square form factor suitable for space-constrained embedded designs
Integrated flexible cable assembly with standard I-PEX interface

Antennas RF Applications

5G/4G Cellular IoT devices
Mobile terminals and CPE units
Smart metering and utility infrastructure
Industrial automation modules

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm the exact cable length and connector type required for your design. Ensure the FR4 substrate dimensions meet the antenna's ground plane requirements for optimal performance. Confirm RoHS compliance status for regulatory adherence in target markets.

Antennas RF Selection Notes

Select this model when broad frequency coverage from sub-GHz to 6 GHz is necessary within a limited physical footprint. The integrated cable simplifies routing compared to direct SMD connectors. Consider the adhesive mounting method for permanent installation where mechanical vibration resistance is required.

Antennas RF Part Context

This part belongs to the Taoglas PC45 series of compact wideband antennas. The series is engineered for high-performance cellular connectivity in dense electronic environments. The PC45.07.0150AQ variant specifically integrates the cable assembly for ease of integration into final assemblies.
