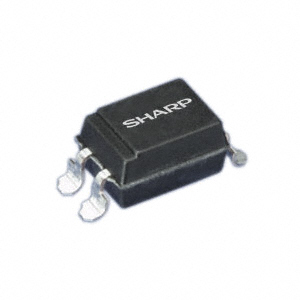

PC4H510NIP is listed in the Transistor, Photovoltaic Output Optoisolators range at ChipApex. The manufacturer field lists Sharp Microelectronics. Its product description is OPTOISOLTR 2.5KV 1CH TRANS 4-SOP. Review the specifications below when checking this part for your BOM.
Transistor, Photovoltaic Output Optoisolators specifications for PC4H510NIP
- Description：OPTOISOLTR 2.5KV 1CH TRANS 4-SOP
- Series：-
- Mfr：Sharp Microelectronics
- Package：Tape & Reel (TR)
- Number of Channels：1
- Voltage - Isolation：2500Vrms
- Current Transfer Ratio (Min)：40% @ 5mA
- Current Transfer Ratio (Max)：240% @ 5mA
- Turn On / Turn Off Time (Typ)：-
- Rise / Fall Time (Typ)：4µs, 5µs
- Input Type：DC
- Output Type：Transistor
- Voltage - Output (Max)：350V
- Current - Output / Channel：50mA
- Voltage - Forward (Vf) (Typ)：1.2V
- Current - DC Forward (If) (Max)：50 mA
- Vce Saturation (Max)：300mV
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Surface Mount
- Package / Case：4-SOIC (0.209", 5.30mm Width)
- Supplier Device Package：4-SOP
- Grade：-
- Qualification：-
Transistor, Photovoltaic Output Optoisolators datasheet and documents for PC4H510NIP
Transistor, Photovoltaic Output Optoisolators Overview
The PC4H510NIP is a transistor output optoisolator manufactured by Sharp Microelectronics. It features a single channel with a 2500Vrms isolation voltage and a maximum output voltage of 80V. The device supports a collector current of 50mA per channel and operates within a temperature range of -30°C to 100°C. It utilizes a 4-SMD surface mount package. The component is currently obsolete and no longer in production.
Transistor, Photovoltaic Output Optoisolators Feature Summary
- Provides electrical isolation between input and output circuits using an internal LED and phototransistor.
- Designed for surface mount assembly in compact electronic applications.
- Capable of handling high isolation voltages to protect sensitive circuitry.
Transistor, Photovoltaic Output Optoisolators Applications
- General purpose signal isolation
- Microprocessor interface circuits
- Solid state relay drivers
Transistor, Photovoltaic Output Optoisolators Procurement Notes
This component is officially marked as obsolete by the manufacturer. Verification of availability should focus on surplus distributors or secondary markets, as standard procurement channels do not support new orders. Confirm authenticity and storage conditions when sourcing from non-authorized suppliers due to end-of-life status.
Transistor, Photovoltaic Output Optoisolators Selection Notes
Engineers requiring this specific part must consider its discontinued status during design finalization. Alternative components with similar pinouts and electrical characteristics should be evaluated if long-term supply stability is required. Verify that replacement options meet the same isolation voltage and package dimensions.
Transistor, Photovoltaic Output Optoisolators Part Context
The PC4H510NIP belongs to Sharp's lineup of transistor output optocouplers. It is part of a series designed for general-purpose isolation tasks. The device integrates a gallium arsenide infrared emitting diode and an NPN silicon phototransistor within a compact surface mount package.
Transistor, Photovoltaic Output Optoisolators Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Users should consult manufacturer cross-reference guides for compatible alternatives.
