PC817X2NIP0F

Transistor, Photovoltaic Output Optoisolators Overview

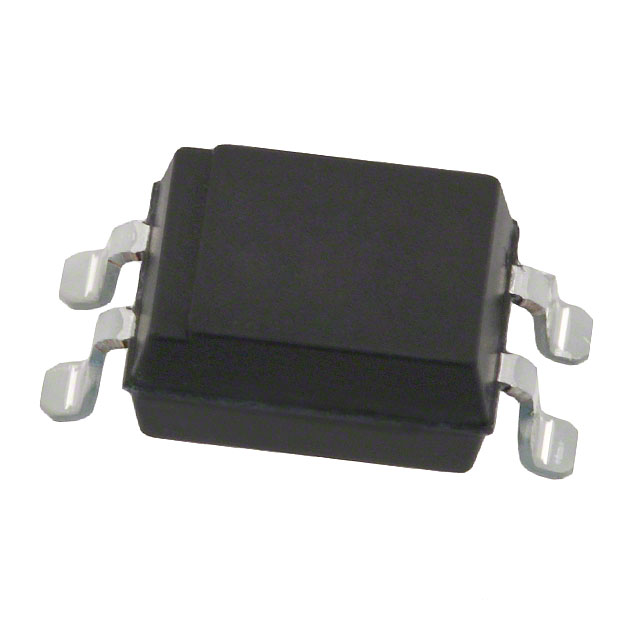

The PC817X2NIP0F is a dual-channel transistor output optocoupler manufactured by Sharp Microelectronics. It features a high-density surface-mount package with four pins. The device provides electrical isolation between input and output circuits, rated at 5000Vrms. Key electrical parameters include a maximum forward voltage of 1.4V, a maximum DC forward current of 50mA, and an output voltage rating of 80V. The collector-emitter saturation voltage is specified at a maximum of 200mV, with a channel output current capacity of 30mA.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• Dual-channel configuration for simultaneous signal isolation
• High isolation voltage capability between input and output sides
• Surface-mount design suitable for high-density mounting applications

Transistor, Photovoltaic Output Optoisolators Applications

• Primary to secondary isolation in switch mode power supplies

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix code against official Sharp documentation to confirm pinout and performance characteristics. Ensure compatibility with surface-mount assembly processes. Confirm that the 5000Vrms isolation rating meets the safety requirements of the target application environment. Cross-reference datasheet revisions to ensure parameter consistency.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when dual-channel isolation is required in a compact form factor. The surface-mount package facilitates automated assembly. Verify that the 80V output voltage and 30mA current ratings align with the load requirements. Ensure the operating temperature range covers the intended environmental conditions.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the PC817 series of photocouplers from Sharp Microelectronics. The series is characterized by high-density mounting types and transistor outputs. The X2 designation indicates a dual-channel variant within the family, offering two independent isolation paths in a single package compared to single-channel counterparts.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Compatible substitutes include other dual-channel transistor output optocouplers with similar isolation ratings and surface-mount packages. Verify pinout compatibility before substitution. Check if alternative parts meet the same 5000Vrms isolation and current transfer ratio specifications.
