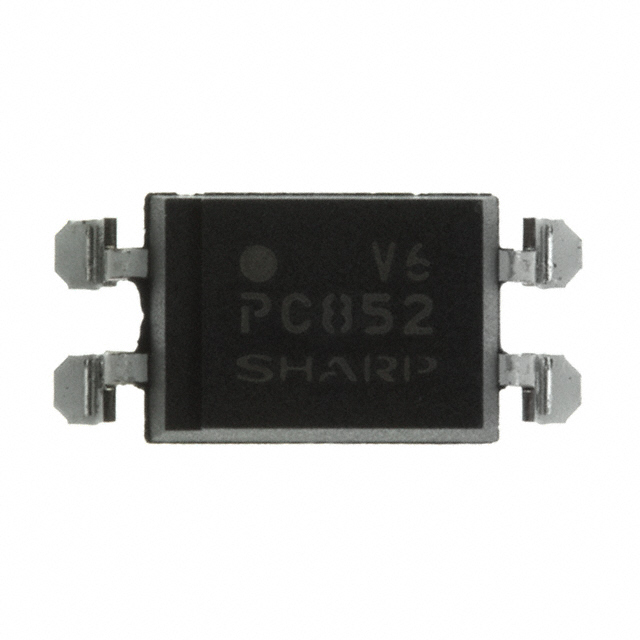

PC852XPJ000F

$0.28

Description：OPTOISOLATOR 5KV 1CH DARL 4-SMD
Series：-
Mfr：Sharp Microelectronics
Package：Tape & Reel (TR)

SKU:40c6ee765b49 Category: Transistor, Photovoltaic Output Optoisolators Brand: Sharp Microelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PC852XPJ000F is listed in the Transistor, Photovoltaic Output Optoisolators range at ChipApex. The manufacturer field lists Sharp Microelectronics. Its product description is OPTOISOLATOR 5KV 1CH DARL 4-SMD. Review the specifications below when checking this part for your BOM.

Transistor, Photovoltaic Output Optoisolators specifications for PC852XPJ000F

Description：OPTOISOLATOR 5KV 1CH DARL 4-SMD
Series：-
Mfr：Sharp Microelectronics
Package：Tape & Reel (TR)
Number of Channels：1
Voltage - Isolation：5000Vrms
Current Transfer Ratio (Min)：1000% @ 1mA
Current Transfer Ratio (Max)：-
Turn On / Turn Off Time (Typ)：-
Rise / Fall Time (Typ)：100µs, 20µs
Input Type：DC
Output Type：Darlington
Voltage - Output (Max)：350V
Current - Output / Channel：150mA
Voltage - Forward (Vf) (Typ)：1.2V
Current - DC Forward (If) (Max)：50 mA
Vce Saturation (Max)：1.2V
Operating Temperature：-30°C ~ 100°C
Mounting Type：Surface Mount
Package / Case：4-SMD, Gull Wing
Supplier Device Package：4-SMD
Grade：-
Qualification：-

Transistor, Photovoltaic Output Optoisolators datasheet and documents for PC852XPJ000F

PC852XPJ000F

Transistor, Photovoltaic Output Optoisolators Overview

The PC852XPJ000F is a single-channel optoisolator manufactured by Sharp Microelectronics, featuring a Darlington transistor output configuration. It provides an isolation voltage of 5000Vrms and is housed in a compact 4-SMD package. The device supports a maximum DC forward current of 50 mA and delivers a collector current of up to 150 mA. With a typical rise and fall time of 100µs and 20µs respectively, it operates within a temperature range of -30°C to 100°C.

Transistor, Photovoltaic Output Optoisolators Feature Summary

High-voltage isolation capability of 5000Vrms for robust circuit protection
Darlington transistor output structure enabling high current transfer ratios
Compact surface-mount design suitable for space-constrained applications

Transistor, Photovoltaic Output Optoisolators Applications

Industrial control systems requiring high-voltage isolation
Power supply feedback loops
Signal isolation in measurement equipment

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix 'PJ' against the manufacturer's latest datasheet to confirm pinout and packaging specifications. Ensure compatibility with RoHS standards if required by your region. Cross-reference the part number with official Sharp documentation to avoid counterfeit components. Confirm availability through authorized distributors only.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high isolation voltage and significant current gain are necessary. The Darlington output offers higher sensitivity compared to standard transistor outputs. Consider the thermal operating range and package size constraints during PCB layout. Verify that the input forward current requirements align with the driving circuit capabilities.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to Sharp's PC85x series of optoisolators, designed for general-purpose isolation tasks. The PC852 variant specifically utilizes a Darlington output stage, distinguishing it from lower-gain alternatives. It is part of a family offering various isolation voltages and package options for diverse electronic designs.
