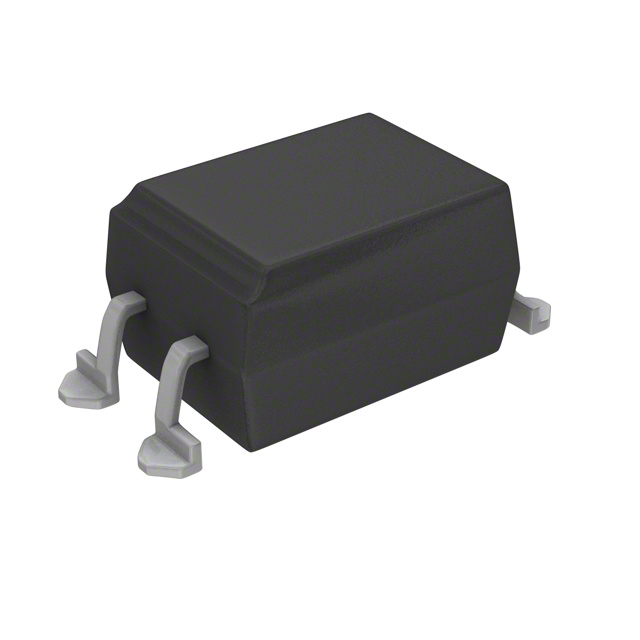

PC853XNNIP0F

Description：OPTOISOLATOR 5KV 1CH DARL 4-SMD
Series：PC853X
Mfr：Sharp Microelectronics
Package：Tape & Reel (TR)

SKU:e79c7031b777 Category: Transistor, Photovoltaic Output Optoisolators Brand: Sharp Microelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PC853XNNIP0F is listed in the Transistor, Photovoltaic Output Optoisolators range at ChipApex. The manufacturer field lists Sharp Microelectronics. Its product description is OPTOISOLATOR 5KV 1CH DARL 4-SMD. Review the specifications below when checking this part for your BOM.

Transistor, Photovoltaic Output Optoisolators specifications for PC853XNNIP0F

Description：OPTOISOLATOR 5KV 1CH DARL 4-SMD
Series：PC853X
Mfr：Sharp Microelectronics
Package：Tape & Reel (TR)
Number of Channels：1
Voltage - Isolation：5000Vrms
Current Transfer Ratio (Min)：1000% @ 10mA
Current Transfer Ratio (Max)：-
Turn On / Turn Off Time (Typ)：-
Rise / Fall Time (Typ)：100µs, 20µs
Input Type：DC
Output Type：Darlington
Voltage - Output (Max)：350V
Current - Output / Channel：150mA
Voltage - Forward (Vf) (Typ)：1.2V
Current - DC Forward (If) (Max)：50 mA
Vce Saturation (Max)：1.2V
Operating Temperature：-30°C ~ 100°C
Mounting Type：Surface Mount
Package / Case：4-SMD, Gull Wing
Supplier Device Package：4-SMD
Grade：-
Qualification：-

Transistor, Photovoltaic Output Optoisolators datasheet and documents for PC853XNNIP0F

PC853XNNIP0F

Transistor, Photovoltaic Output Optoisolators Overview

The PC853XNNIP0F is a single-channel optoisolator manufactured by Sharp Microelectronics, featuring a Darlington phototransistor output. It provides high isolation voltage of 5000Vrms and supports a collector-emitter voltage of 350V. The device operates with a minimum current transfer ratio of 1000% at an input current of 1mA. It is housed in a 4-SMD gull-wing package and is currently classified as obsolete.

Transistor, Photovoltaic Output Optoisolators Feature Summary

High isolation voltage capability for robust circuit protection
Darlington output configuration for enhanced signal gain
Surface-mount packaging for automated assembly integration

Transistor, Photovoltaic Output Optoisolators Applications

Industrial control systems requiring galvanic isolation
Power supply feedback loops
Signal transmission across isolated grounds

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify component status carefully as this part is listed as obsolete. Confirm availability through secondary distributors or surplus markets. Ensure datasheet revisions match design requirements before procurement. Check for lead time variations typical of end-of-life components.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Consider the high CTR and 350V output rating when designing circuits. Evaluate thermal performance within the specified operating temperature range. Verify pin compatibility if replacing existing designs. Assess supply chain stability due to obsolete status.

Transistor, Photovoltaic Output Optoisolators Part Context

This component belongs to Sharp's PC853X series of optocouplers. It shares family characteristics such as Darlington output structure and SMD packaging. The specific suffix indicates surface-mount gull-wing configuration. It serves as a legacy option for high-gain isolation applications.
