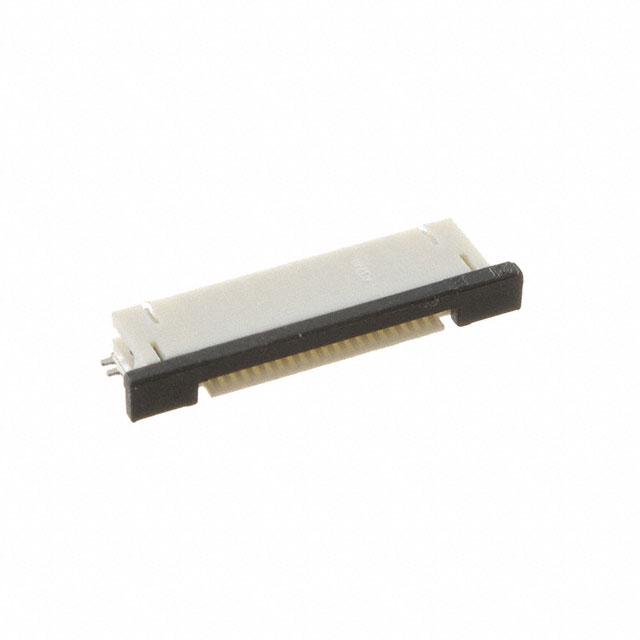

FFC, FPC (Flat Flexible) Connector Assemblies PCA-2FA-10-HL-3 product image

PCA-2FA-10-HL-3

$0.77

Description：CONN FFC FPC BOTTOM 10POS 1MM RA
Series：PCA
Mfr：Adam Tech
Package：Tube

SKU:8d9017c0e048 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Adam Tech

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PCA-2FA-10-HL-3 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Adam Tech. Its product description is CONN FFC FPC BOTTOM 10POS 1MM RA. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for PCA-2FA-10-HL-3

Description：CONN FFC FPC BOTTOM 10POS 1MM RA
Series：PCA
Mfr：Adam Tech
Package：Tube
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：10
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.091" (2.30mm)
Locking Feature：Slide Lock
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Thermoplastic
Actuator Material：Thermoplastic
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：-
Operating Temperature：-25°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for PCA-2FA-10-HL-3

PCA-2FA-10-HL-3
