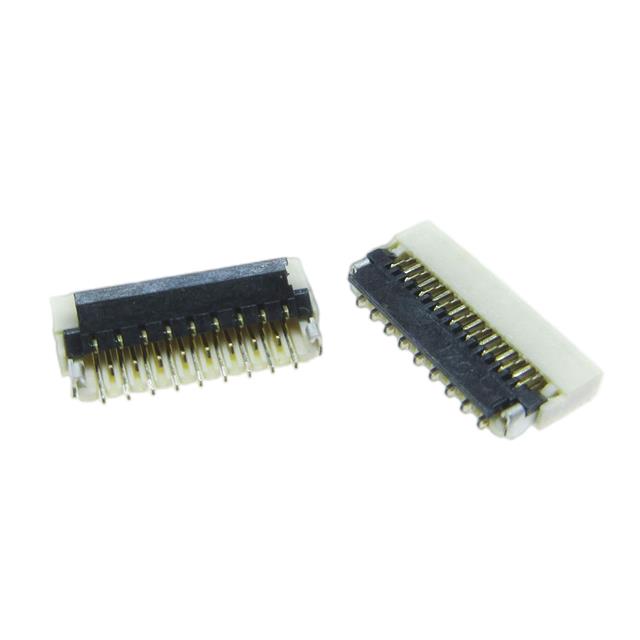

FFC, FPC (Flat Flexible) Connector Assemblies PCA-7F-17-HL-3-G product image

PCA-7F-17-HL-3-G

$0.94

Description：CONN FFC BOTTOM 17POS 0.3MM R/A
Series：PCA
Mfr：Adam Tech
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4759cbcaee18 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Adam Tech

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PCA-7F-17-HL-3-G is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Adam Tech. Its product description is CONN FFC BOTTOM 17POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for PCA-7F-17-HL-3-G

Description：CONN FFC BOTTOM 17POS 0.3MM R/A
Series：PCA
Mfr：Adam Tech
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：17
Pitch：0.012" (0.30mm)
Termination：Solder
FFC, FCB Thickness：0.20mm
Height Above Board：0.039" (1.00mm)
Locking Feature：Flip Lock
Cable End Type：Tapered
Contact Material：Copper Alloy
Contact Finish：Gold
Housing Material：Thermoplastic
Actuator Material：Thermoplastic
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：30V
Operating Temperature：-25°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for PCA-7F-17-HL-3-G

PCA-7F-17-HL-3-G
