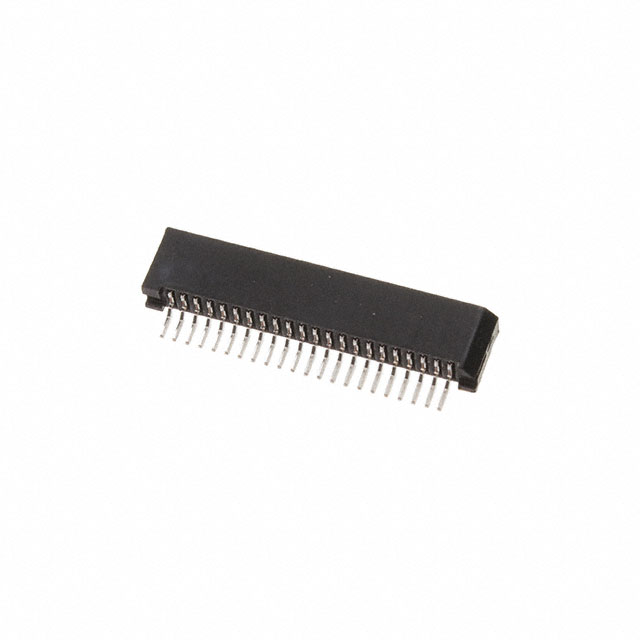

FFC, FPC (Flat Flexible) Connector Assemblies PCB-C5-22-SA-SMT product image

PCB-C5-22-SA-SMT

$0.19

Description：CONN FFC FPC 22POS 1MM R/A
Series：PCB
Mfr：Adam Tech
Package：Tube

SKU:f96e94099ff0 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Adam Tech

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PCB-C5-22-SA-SMT is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Adam Tech. Its product description is CONN FFC FPC 22POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for PCB-C5-22-SA-SMT

Description：CONN FFC FPC 22POS 1MM R/A
Series：PCB
Mfr：Adam Tech
Package：Tube
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top and Bottom
Number of Positions：22
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.110" (2.80mm)
Locking Feature：-
Cable End Type：Straight
Contact Material：Copper Alloy
Contact Finish：Tin
Housing Material：Thermoplastic, Glass Filled
Actuator Material：-
Features：Low Insertion Force (LIF)
Voltage Rating：-
Operating Temperature：-25°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for PCB-C5-22-SA-SMT

PCB-C5-22-SA-SMT
