PCD-C020GL1W

Antennas RF Overview

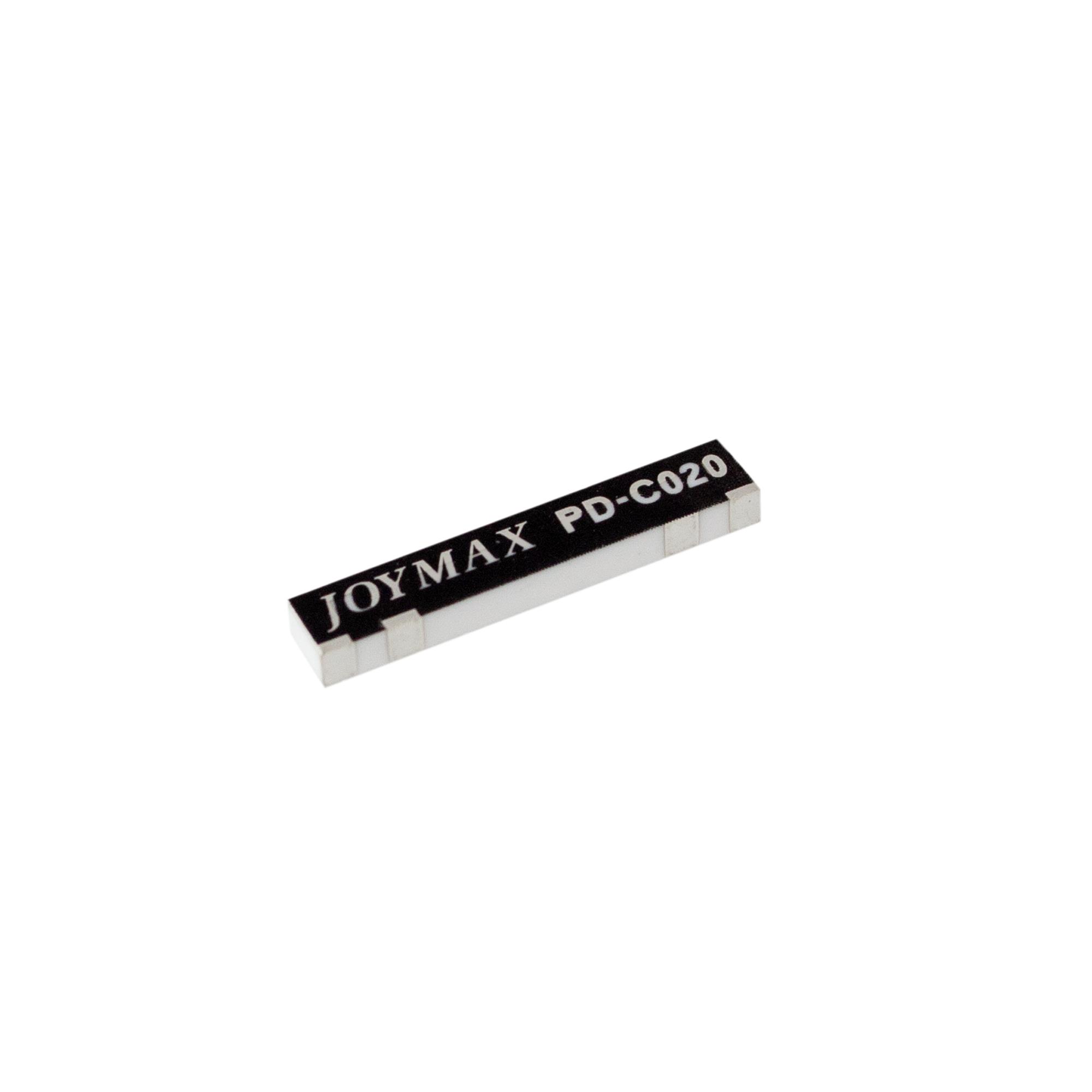

The Joymax Electronics PCD-C020GL1W is a surface-mount ceramic chip antenna designed for Global Navigation Satellite System (GNSS) applications. It operates within the L1 frequency band, covering ranges from 1559 MHz to 1602 MHz. The component supports multiple satellite constellations including GPS, BeiDou, Galileo, GLONASS, and QZSS. It features a compact SMD package suitable for integration into mobile devices and IoT modules requiring reliable GNSS positioning capabilities.

Antennas RF Feature Summary

• Surface-mount ceramic chip construction for PCB integration
• Supports multi-constellation GNSS reception in the L1 band
• Designed for embedded applications in portable electronics

Antennas RF Applications

• GPS navigation modules
• BeiDou positioning systems
• Galileo receiver designs
• GLONASS enabled devices
• QZSS compatible hardware

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct impedance matching and radiation pattern requirements. Confirm that the selected variant aligns with the target GNSS constellation support needs. Cross-reference the package dimensions with the intended PCB layout to guarantee proper soldering compatibility and mechanical fit within the device enclosure constraints.

Antennas RF Selection Notes

Select this component when a low-profile, surface-mount solution is required for L1 band GNSS reception. Ensure the design accommodates the necessary ground plane clearance specified in the technical documentation. Evaluate the antenna's placement relative to other RF sources to minimize interference. Verify compatibility with the host receiver's input impedance and signal processing requirements for optimal performance.

Antennas RF Part Context

This part belongs to Joymax Electronics' portfolio of embedded RF antennas. It complements other models like the PPX-C025GL1W, offering a compact alternative for space-constrained designs. The series focuses on providing reliable connectivity for various wireless standards, supporting engineers in developing robust IoT and mobile communication products with integrated positioning capabilities.

Antennas RF Replacement Considerations

Consult the official Joymax Electronics substitution guide for verified equivalent part numbers. Do not assume cross-compatibility with generic L1 antennas without verifying impedance and bandwidth specifications. Review the datasheet for any pinout or mounting differences that may require PCB redesign when transitioning between similar model variants.
