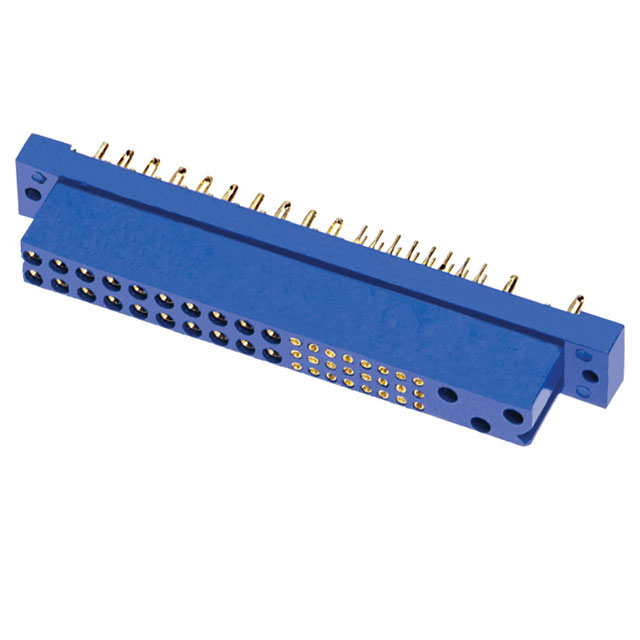

Specialized Backplane Connectors PCIH47M400A1 product image

PCIH47M400A1

$68.96

Description：PCIH 47C 23#16 24#22 PIN R/A
Series：PCIH
Mfr：Positronic
Package：Box

SKU:eedbccd1666b Category: Specialized Backplane Connectors Brand: Positronic

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PCIH47M400A1 is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists Positronic. Its product description is PCIH 47C 23#16 24#22 PIN R/A. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for PCIH47M400A1

Description：PCIH 47C 23#16 24#22 PIN R/A
Series：PCIH
Mfr：Positronic
Package：Box
Connector Usage：-
Connector Type：Header, Male Pins
Connector Style：CompactPCI®
Number of Positions：47
Number of Positions Loaded：All
Pitch：-
Number of Rows：-
Number of Columns：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Layout, Typical：24 Signal, 23 Power
Features：-
Contact Finish：Gold
Contact Finish Thickness：Flash
Color：Blue

Specialized Backplane Connectors datasheet and documents for PCIH47M400A1
