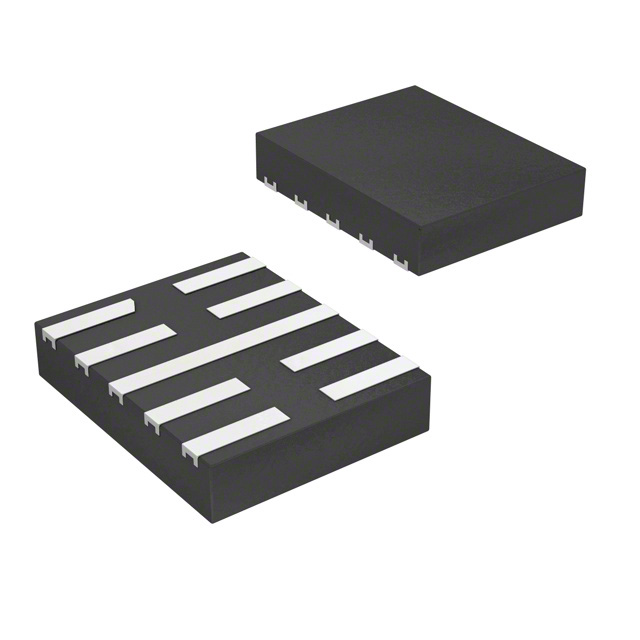

PCMF2DFN1XL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Nexperia USA Inc.. Its product description is CMC 4LN SMD ESD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PCMF2DFN1XL
- Description：CMC 4LN SMD ESD
- Series：PCM
- Mfr：Nexperia USA Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：4
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：5Ohm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：TVS Diode ESD Protection
- Mounting Type：Surface Mount
- Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height (Max)：0.020" (0.50mm)
- Package / Case：9-XFDFN
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PCMF2DFN1XL
Common Mode Chokes Overview
PCMF2DFN1XL is a common mode choke manufactured by Nexperia USA Inc. It features a four-line (4LN) configuration designed for surface mount device (SMD) applications. The component is housed in a 9-XFDFN package, providing a compact footprint suitable for space-constrained designs. It serves as an electromagnetic interference (EMI) filter and electrostatic discharge (ESD) protection element within electronic circuits.
Common Mode Chokes Feature Summary
- Four-line architecture for multi-signal filtering
- Surface mount construction for automated assembly
- Compact DFN package design
Common Mode Chokes Applications
- Smartphone signal line filtering
- Portable device ESD protection
- High-speed data interface noise suppression
Common Mode Chokes Procurement Notes
Verify the manufacturer part number PCMF2DFN1XL against official Nexperia documentation to confirm specifications. Ensure the supplier provides valid traceability and authenticity guarantees. Check for any specific handling requirements related to the SMD packaging during storage and installation.
Common Mode Chokes Selection Notes
Select this component when designing circuits requiring multi-line common mode noise reduction in small form factors. Evaluate the impedance characteristics and current ratings against the specific signal lines to ensure effective filtering without signal degradation. Confirm compatibility with the target PCB layout constraints.
Common Mode Chokes Part Context
This component belongs to Nexperia's portfolio of passive components focused on signal integrity and protection. It addresses the growing demand for compact filtering solutions in mobile electronics where space is limited and high-frequency noise must be managed effectively across multiple conductors simultaneously.
Common Mode Chokes Replacement Considerations
Consult official Nexperia documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' common mode chokes without verifying electrical parameters and physical dimensions.
