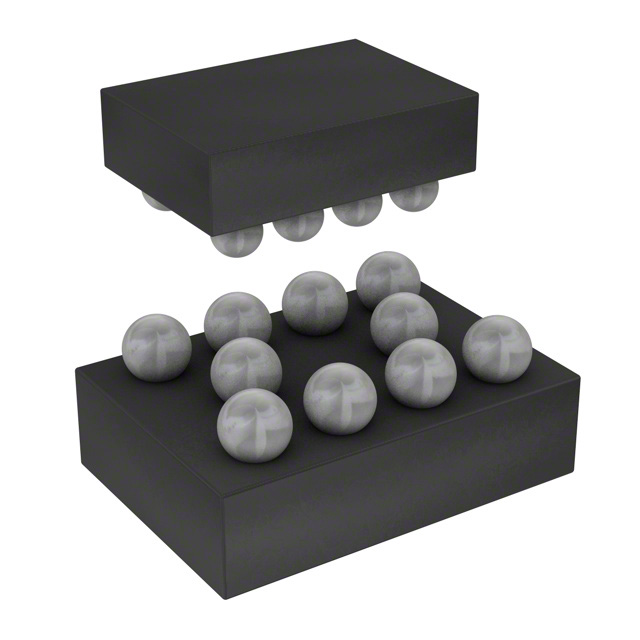

PCMF2USB3BA/CZ

$1.16

Description：CMC 4LN SMD ESD
Series：PCM
Mfr：Nexperia USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2d6d9f4c49d4 Category: Common Mode Chokes Brand: Nexperia USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PCMF2USB3BA/CZ is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Nexperia USA Inc.. Its product description is CMC 4LN SMD ESD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PCMF2USB3BA/CZ

Description：CMC 4LN SMD ESD
Series：PCM
Mfr：Nexperia USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：4
Current Rating (Max)：-
DC Resistance (DCR) (Max)：2.6Ohm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-
Ratings：-
Approval Agency：-
Features：TVS Diode ESD Protection
Mounting Type：Surface Mount
Size / Dimension：0.062" L x 0.046" W (1.57mm x 1.17mm)
Height (Max)：0.025" (0.64mm)
Package / Case：10-UFBGA, WLCSP
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PCMF2USB3BA/CZ

PCMF2USB3BA/CZ

Common Mode Chokes Overview

The PCMF2USB3BA/CZ is a common mode EMI filter circuit manufactured by Nexperia, designed for high-speed signal lines. It integrates electrostatic discharge (ESD) protection within a WLCSP-10 package. Key electrical parameters include a cutoff frequency of 10 GHz, capacitance of 300 fF, and resistance of 2.2 ohms. The device supports a voltage rating of 9 V and a current rating of 7.5 A. It features two channels and utilizes SMD/SMT termination.

Common Mode Chokes Feature Summary

Integrates bidirectional ESD protection with common mode filtering
Provides low insertion loss for differential high-speed signals
Compact WLCSP-10 surface mount packaging

Common Mode Chokes Applications

USB data line protection
High-speed interface EMI suppression
Portable electronic device signal conditioning

Common Mode Chokes Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status via the official datasheet. Check for limited supply conditions as indicated by current market availability. Ensure storage and handling procedures meet ESD safety standards to preserve device integrity before installation.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring combined EMI filtering and ESD protection for differential pairs. The WLCSP-10 form factor suits space-constrained layouts. Evaluate the 10 GHz cutoff frequency against target signal bandwidths. Consider the 2.2 ohm resistance value for impedance matching requirements in high-speed transmission lines.

Common Mode Chokes Part Context

This part belongs to Nexperia's portfolio of integrated passive devices combining filtering and protection functions. It addresses the need for compact solutions in modern electronics where board real estate is limited. The integration reduces component count compared to discrete filter and TVS diode combinations.
