PCMF7060S-701

Common Mode Chokes Overview

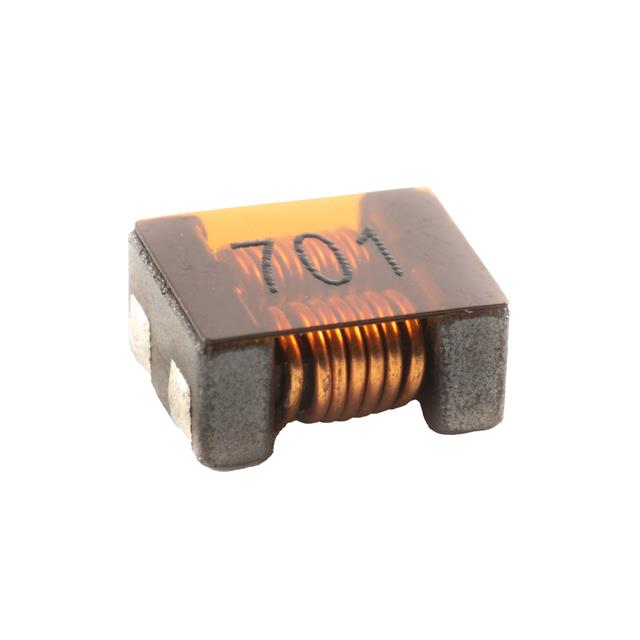

The PCMF7060S-701 is a two-line surface mount common mode choke manufactured by Allied Components International. It features an inductance of 1.5 µH and offers a common mode impedance of 700 Ω at 100 MHz. The component supports a maximum DC current of 4 A with a low DC resistance of 15 mΩ. It operates within a voltage rating of 80 V and maintains an insulation resistance of 10 MΩ. The device is housed in a compact 7060 package, measuring 7 mm in length, 6 mm in depth, and 3.5 mm in height.

Common Mode Chokes Feature Summary

• Provides high common mode noise suppression with 700 Ω impedance at 100 MHz
• Designed for high current applications supporting up to 4 A DC
• Compact surface mount construction suitable for space-constrained designs

Common Mode Chokes Applications

• High current signal line filtering
• Noise suppression in compact electronic assemblies
• Common mode interference reduction in data lines

Common Mode Chokes Procurement Notes

Verify the specific suffix -701 against official Allied Components International documentation to confirm exact electrical characteristics. Ensure the selected variant matches the required 700 Ω impedance and 4 A current rating for your circuit design. Cross-reference package dimensions and termination types with your PCB layout requirements before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust noise attenuation on dual-line interfaces carrying significant DC current. The low DC resistance minimizes power loss, while the high impedance ensures effective filtering. Confirm that the operating temperature range and voltage ratings align with the specific environmental conditions of the target application.

Common Mode Chokes Part Context

This part belongs to the PCMF7060S series of SMD high current common mode filters produced by Allied Components International. The manufacturer specializes in magnetic components including inductors and ferrite beads. This series is engineered to provide reliable performance in compact form factors for modern electronic systems requiring efficient electromagnetic interference mitigation.

Common Mode Chokes Replacement Considerations

The ACM7060-701-2PL-TL01 from TDK is a publicly confirmed substitute offering similar 7060 package dimensions and comparable electrical specifications. Verify pin compatibility and exact impedance curves before substitution.
