PCS146HF2

Overview

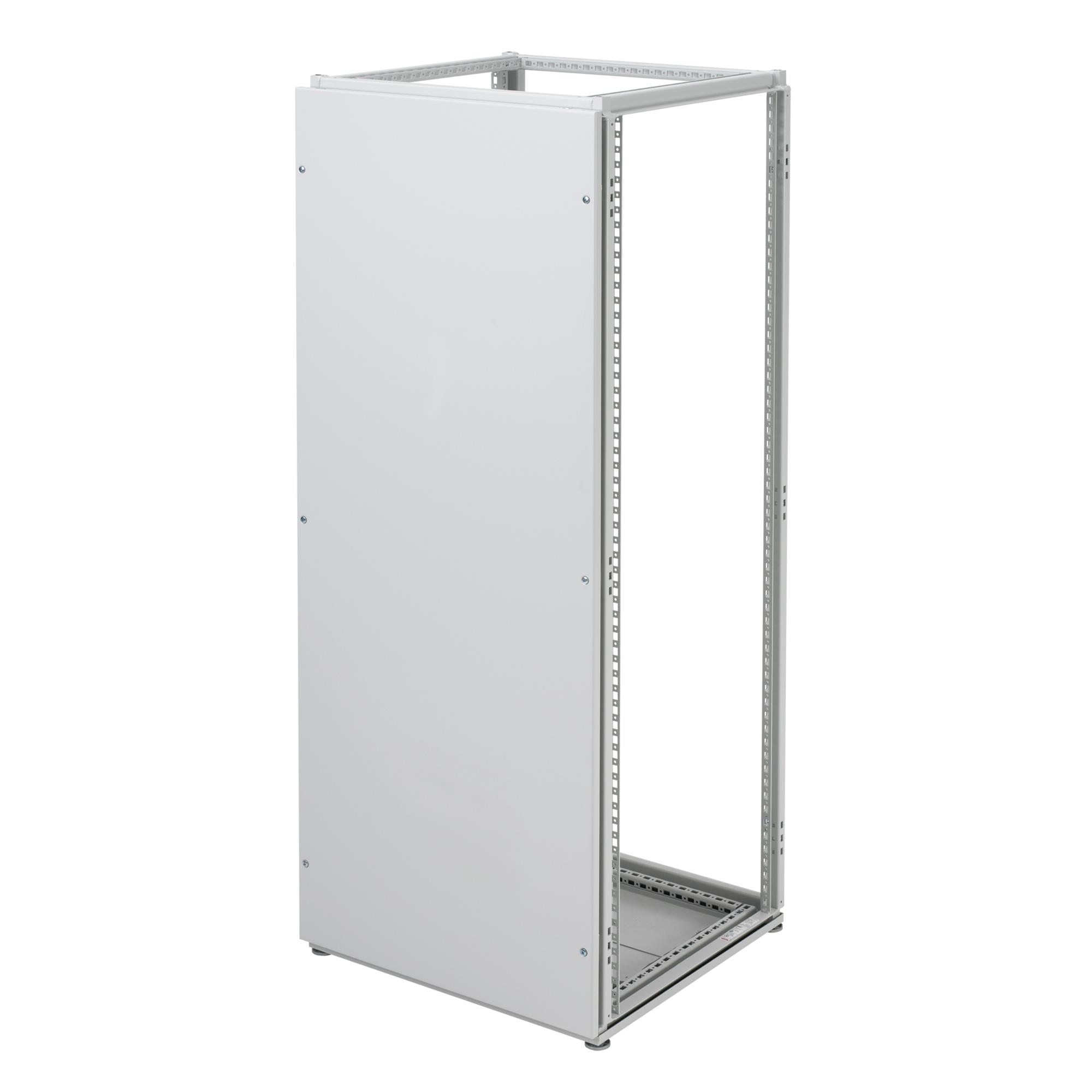

The PCS146HF2 is a solid cover component manufactured by Hoffman Enclosures, Inc., designed for use within the PROLINE EMC Steel Modular system. It serves as an EMI/RFI shielding solution for enclosure frames with dimensions of 1400 mm in height and 600 mm in width. The unit is constructed from steel and features a polyester powder-coated finish to ensure durability and corrosion resistance. This component is classified as a medium EMI/RFI solid cover, intended to close open sides or tops of modular rack structures.

Feature Summary

• Provides effective electromagnetic interference (EMI) and radio frequency interference (RFI) shielding for modular enclosure systems
• Constructed from durable steel with a polyester powder-coated finish for environmental protection
• Designed specifically to fit 1400 mm high by 600 mm wide frame configurations

Applications

• Shielding open sides of nVent HOFFMAN PROLINE EMC steel modular frames
• Creating complete enclosed environments for sensitive electronic equipment requiring EMI/RFI protection
• Integration into industrial control panels and rack-mounted systems

Procurement Notes

Verify that the target enclosure frame matches the required 1400 mm height and 600 mm width specifications before ordering. Confirm compatibility with the PROLINE EMC series. Check current availability status as items may be subject to backorder or drop-ship constraints directly from the manufacturer. Ensure the part number PCS146HF2 corresponds to the solid cover variant rather than side panels or other accessories.

Selection Notes

Select this component when EMI/RFI shielding is required for the top or side openings of a 1400x600mm modular frame. It is suitable for applications demanding robust metal construction and standardized mounting interfaces. Consider the weight and shipping requirements, as this item may require direct shipment from the manufacturer. Ensure all necessary hardware, such as semi-flush screws, is available separately if not included.

Part Context

This part belongs to the Hoffman Enclosures product line, specifically the PROLINE EMC series. It functions as a complementary accessory to the main frame structures, allowing for the customization of shielded enclosures. The component is distinct from standard non-shielded covers due to its specific EMI/RFI performance characteristics and material composition.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify exact dimensional compatibility with existing frames before attempting to use alternative components.
