PCSH127MT6R8

Fixed Inductors Overview

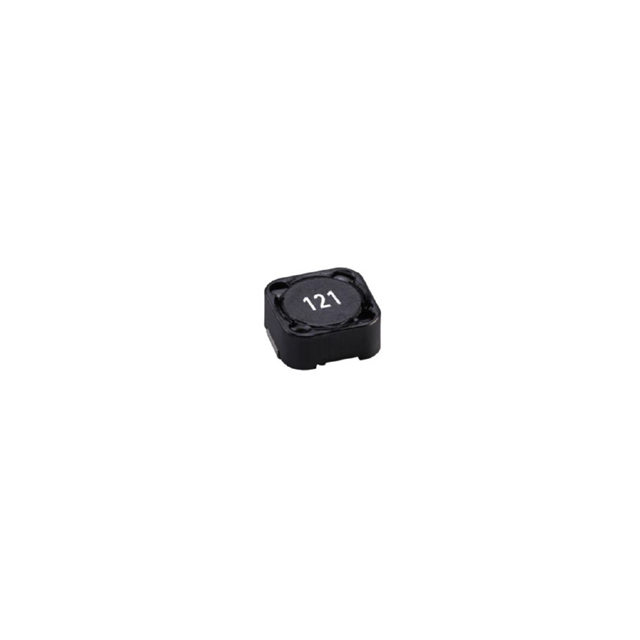

The PCSH127MT6R8 is a shielded fixed inductor manufactured by Viking Tech. It features a nonstandard surface-mount package with dimensions of 12.00mm x 12.00mm. The component provides an inductance value of 6.8 µH and supports a maximum current rating of 13.3 A. Its direct current resistance (DCR) is specified as a maximum of 21mOhm. This part belongs to the PCS series, designed for high-current applications requiring compact footprint solutions.

Fixed Inductors Feature Summary

• Shielded magnetic structure for reduced electromagnetic interference
• High current handling capability suitable for power delivery networks
• Compact nonstandard surface-mount form factor

Fixed Inductors Applications

• Power supply modules
• Point-of-load conversion circuits
• Industrial control systems

Fixed Inductors Procurement Notes

Verify the specific manufacturer designation when sourcing, as Viking Tech operates under different brand identities including Viking Corporation and Anmina. Confirm that the requested component matches the exact model number PCSH127MT6R8 to ensure compatibility with the required 6.8 µH inductance and 13.3 A current specifications. Check for any obsolescence notices or lifecycle status updates from authorized distributors before finalizing procurement plans.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring a 6.8 µH inductance with high saturation current capabilities. The 12x12mm package size offers a balance between thermal performance and board space efficiency. Ensure the application environment does not exceed the thermal limits associated with the 21mOhm DCR at full load conditions. Consider the shielded design benefits if EMI sensitivity is a primary constraint in the layout.

Fixed Inductors Part Context

This inductor is part of the PCS series from Viking Tech, which focuses on precision passive components. The series includes various inductance values tailored for different power management needs. Viking Tech specializes in high-reliability products utilizing advanced thin film and metal strip technologies, serving diverse markets including industrial and telecommunications sectors.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and dimensional compatibility if considering alternative manufacturers' shielded inductors with similar 6.8 µH and 13.3 A ratings.
