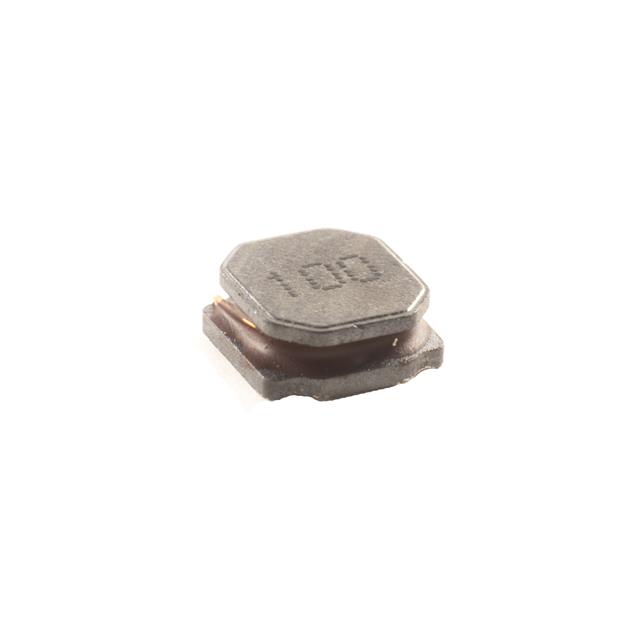

PCSV48-2R2M-RC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Allied Components International. Its product description is 2.2UH 20% SHIELDED POWER CHIP I. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for PCSV48-2R2M-RC
- Description：2.2UH 20% SHIELDED POWER CHIP I
- Series：PCSV48
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Type：Wirewound
- Material - Core：-
- Inductance：2.2 µH
- Tolerance：±20%
- Current Rating (Amps)：2.5 A
- Current - Saturation (Isat)：2.8A
- Shielding：Shielded
- DC Resistance (DCR)：60mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 105°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.157" L x 0.157" W (4.00mm x 4.00mm)
- Height - Seated (Max)：0.079" (2.00mm)
- Features：-
Fixed Inductors datasheet and documents for PCSV48-2R2M-RC
Fixed Inductors Overview
The PCSV48-2R2M-RC is a shielded power chip inductor manufactured by Allied Components International. It features a wirewound construction with an inductance of 2.2 µH and a tolerance of ±20%. The component supports a saturation current of 2.8 A and has a DC resistance of 44 mΩ. It is designed for surface mount applications, offering reliable performance in power supply circuits while complying with RoHS standards.
Fixed Inductors Feature Summary
- Shielded design to minimize electromagnetic interference
- Wirewound construction for stable inductance
- Surface mount package for automated assembly
Fixed Inductors Applications
- DC-DC converter output filtering
- Power supply input stages
- Signal processing circuits requiring noise suppression
Fixed Inductors Procurement Notes
Verify the manufacturer part number against official Allied Components International documentation to ensure authenticity. Confirm that the specific variant matches the required electrical specifications, including inductance value and current ratings, before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component when a shielded power inductor with a 2.2 µH nominal value is required. Ensure the application current does not exceed the 2.8 A saturation limit. Consider the physical dimensions and surface mount footprint compatibility with the target PCB layout during the design phase.
Fixed Inductors Part Context
This part belongs to the PCSV series of power inductors from Allied Components International. The series offers various inductance values and current ratings tailored for different power management applications. The PCSV48-2R2M-RC specifically addresses needs for compact, high-current shielding solutions.
