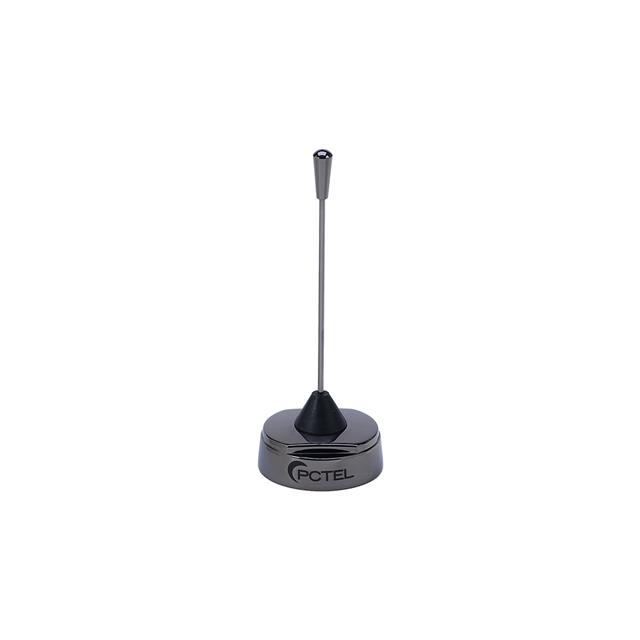

PCTCN7080 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 805MHZ WHIP STR NMO MNT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PCTCN7080
- Description：RF ANT 805MHZ WHIP STR NMO MNT
- Series：PCTCN
- Mfr：Amphenol PCTEL
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：805MHz
- Frequency Range：740MHz ~ 870MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：-
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：NMO Mount
- Height (Max)：3.300" (83.82mm)
- Applications：2G, 3G, 5G, Bluetooth, Cellular, LMR/TETRA/P25, LTE
- Power - Max：150 W
Antennas RF datasheet and documents for PCTCN7080
Antennas RF Overview
The Amphenol PCTEL PCTCN7080 is a quarter-wave mobile antenna designed for the 740-870 MHz frequency range. It features a unity gain (0 dB) specification and supports a maximum power handling of 150 watts. The unit utilizes an NMO mount type and has a maximum height of 3.300 inches (83.82mm). Key electrical parameters include a VSWR of 2 and a stainless steel whip material construction.
Antennas RF Feature Summary
- Durable super flexible design with reinforced brass button contact
- Chrome nut finish option available alongside titanium gray variants
- High-performance connectivity for mobile applications
Antennas RF Applications
- 2G, 3G, and 5G cellular communications
- Bluetooth and Bluetooth Low-Energy connectivity
- LMR, TETRA, and P25 public safety networks
Antennas RF Procurement Notes
Verify the specific finish variant required, as sources indicate both chrome nut and titanium gray options exist for this part number. Confirm that the NMO mount is ordered separately if not included in the specific purchase order. Ensure the frequency range of 740-870 MHz aligns with the target network deployment requirements before finalizing procurement.
Antennas RF Selection Notes
Select this component when a quarter-wave mobile antenna is needed for UHF frequencies between 740 and 870 MHz. The 150-watt power rating and 2 VSWR make it suitable for standard mobile radio deployments. Consider the physical dimensions of 3.300 inches for vehicle clearance and verify compatibility with NMO mounting bases for installation.
Antennas RF Part Context
This antenna belongs to the PCTCN series from Amphenol PCTEL, which specializes in high-performance mobile antennas for Wi-Fi, Bluetooth, and cellular connectivity. PCTEL, now part of Amphenol, provides wireless technology solutions including industrial IoT devices and antenna systems. This model represents their focus on durable, flexible designs for mobile environments.
Antennas RF Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Users should verify mechanical fitment and electrical specifications against existing installations when considering alternative models.
