Product Detailed Parameters
- Description：DIODE MODULE GP 800V 100A MODULE
- Series：-
- Mfr：KYOCERA AVX
- Package：Bulk
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：800 V
- Current - Average Rectified (Io) (per Diode)：100A
- Voltage - Forward (Vf) (Max) @ If：1.41 V @ 320 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：7 mA @ 800 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

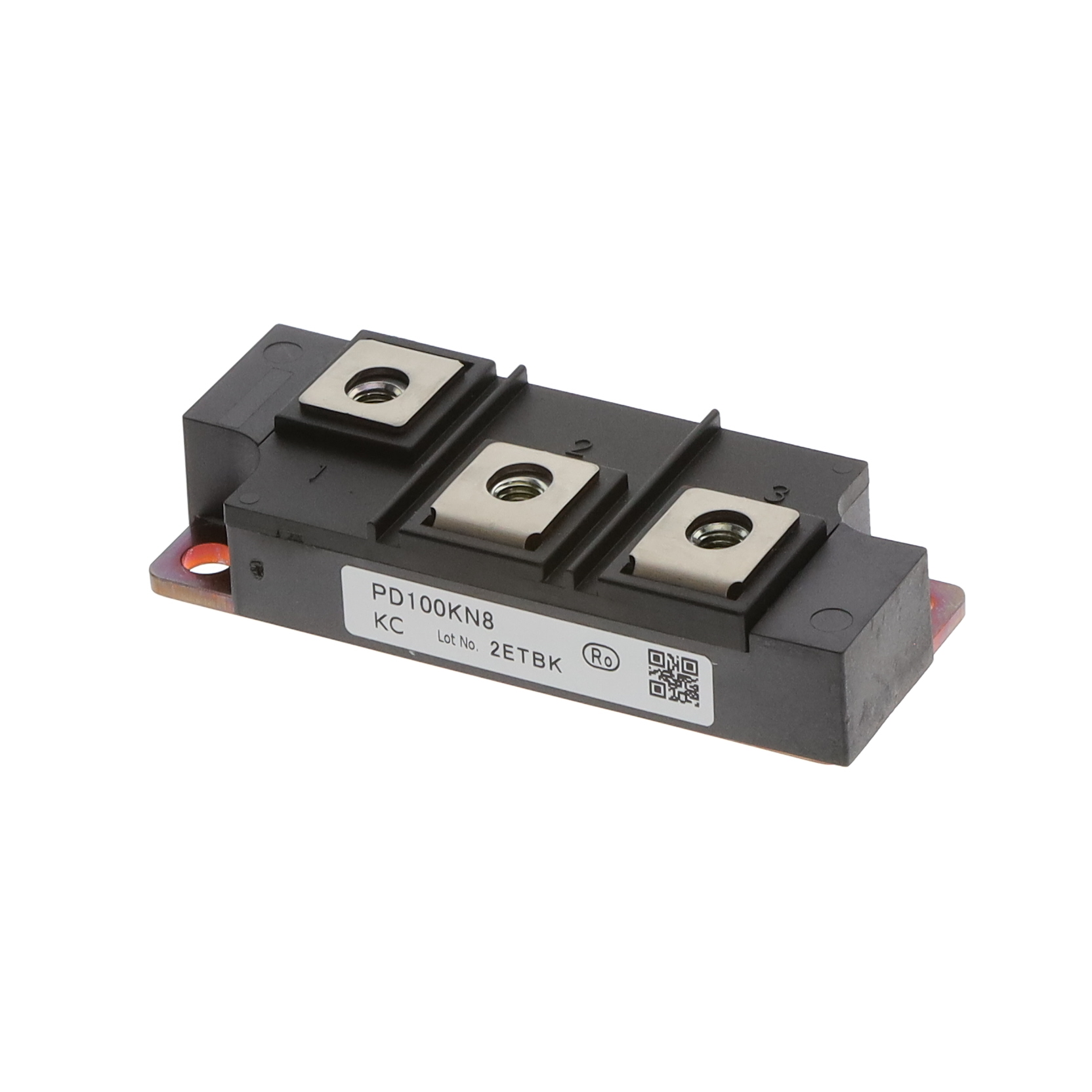

The KYOCERA AVX PD100KN8 is a dual standard recovery rectifier diode module designed for high-power applications. It features an 800V reverse voltage rating and supports a continuous forward current of 100A per leg. The device exhibits a maximum forward voltage drop of 1.41V at rated conditions and can withstand a surge current of 2kA. Operating within a temperature range of -40°C to +150°C, it utilizes screw mount installation for secure mechanical attachment.
Feature Summary
- Dual configuration providing two independent rectifying paths in a single package
- Standard recovery characteristics suitable for general-purpose power conversion
- Robust thermal performance allowing operation up to 150°C junction temperature
- High surge current capability to handle transient load conditions
Applications
- Industrial motor drives and inverters
- Uninterruptible power supply (UPS) systems
- Welding equipment power stages
- General industrial rectification circuits
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status as documentation may vary by production batch. Check for end-of-life notifications or product change notices prior to final design approval. Ensure screw mounting hardware matches the specified terminal requirements for reliable electrical contact.
Selection Notes
Select this module when dual isolated rectification is required in high-current environments. Evaluate thermal management solutions to maintain junction temperatures within the specified 150°C limit under full load. Consider the 1.41V forward voltage drop for efficiency calculations in power loss assessments. Verify that the 800V blocking voltage exceeds the peak inverse voltage expected in the target circuit topology.
Part Context
This component belongs to the PD series of rectifier modules from Kyocera AVX. These modules are engineered for robustness in demanding power electronics environments. The series typically offers various current and voltage ratings to accommodate different industrial power conversion needs while maintaining standardized mounting interfaces.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Designers should consult official manufacturer resources for qualified alternatives or cross-reference specifications with other dual diode modules offering matching 100A/800V ratings and screw-mount configurations.
