PD700MYN18

$236.09

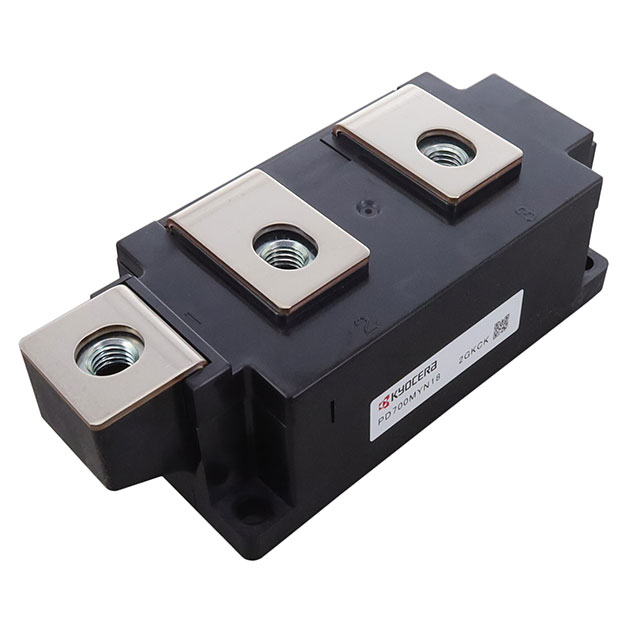

Description：DIODE MOD GP 1800V 700A MOD
Series：-

SKU:9e15d55ef961 Category: Diode Arrays Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE MOD GP 1800V 700A MOD
Series：-
Mfr：KYOCERA AVX
Package：Bulk
Diode Configuration：1 Pair Series Connection
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1800 V
Current - Average Rectified (Io) (per Diode)：700A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 2000 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：20 mA @ 1800 V
Operating Temperature - Junction：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Grade：-
Qualification：-
