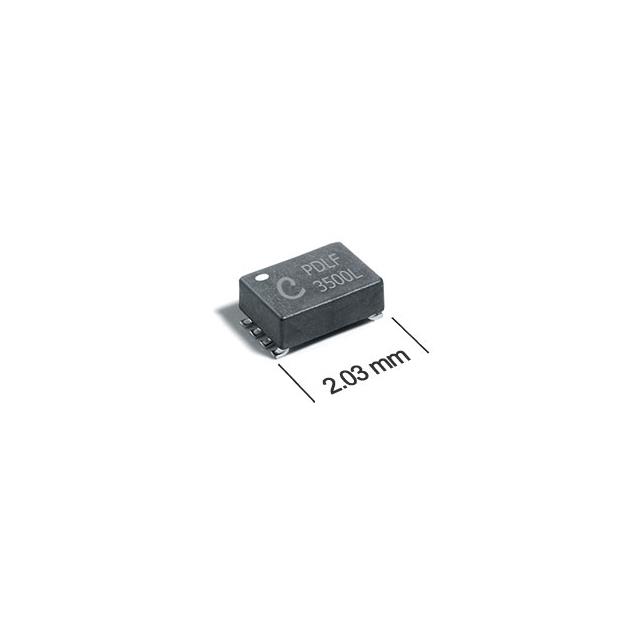

PDLF4500LC is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Coilcraft. Its product description is CMC 5UH 500MA 4LN 848 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PDLF4500LC
- Description：CMC 5UH 500MA 4LN 848 OHM SMD
- Series：PDLF
- Mfr：Coilcraft
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：4
- Current Rating (Max)：500mA
- DC Resistance (DCR) (Max)：200mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.307" L x 0.217" W (7.80mm x 5.50mm)
- Height (Max)：0.146" (3.70mm)
- Package / Case：8-SMD, Gull Wing
- Inductance @ Frequency：5 µH @ 1 MHz
- Impedance @ Frequency：848 Ohms @ 200 MHz
Common Mode Chokes datasheet and documents for PDLF4500LC
Common Mode Chokes Overview
The PDLF4500LC is a surface mount data line EMI filter manufactured by Coilcraft. It functions as a common mode choke designed for noise attenuation in high-speed digital interfaces. The component features an inductance of 5uH, a current rating of 500mA, and a DC resistance of 200mOhms. It is housed in a compact package suitable for automated assembly.
Common Mode Chokes Feature Summary
- Provides common mode noise attenuation for data lines
- Designed for surface mount technology integration
- RoHS compliant construction
Common Mode Chokes Applications
- High-speed data interface protection
- EMI suppression in digital circuits
- Noise filtering for signal integrity maintenance
Common Mode Chokes Procurement Notes
Verify the specific suffix 'LC' to confirm the packaging configuration, which indicates a 7-inch machine-ready reel using EIA-481 embossed plastic tape. Ensure the order matches the required quantity per reel. Confirm RoHS compliance status if environmental regulations apply to the final assembly process.
Common Mode Chokes Selection Notes
Select this component when a 5uH inductance and 500mA current handling capability are required for common mode noise reduction. Consider the physical footprint and pin configuration for PCB layout compatibility. Evaluate the DC resistance value against power loss constraints in the target circuit design.
Common Mode Chokes Part Context
This part belongs to the PDLF series of SMT Data Line EMI Filters produced by Coilcraft. The series includes variants such as PDLF3500LC and PDLF4500L. The PDLF4500LC specifically denotes the version with the LC packaging suffix, distinguishing it from other reel or tape options available within the same electrical specification family.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative components from different manufacturers.
