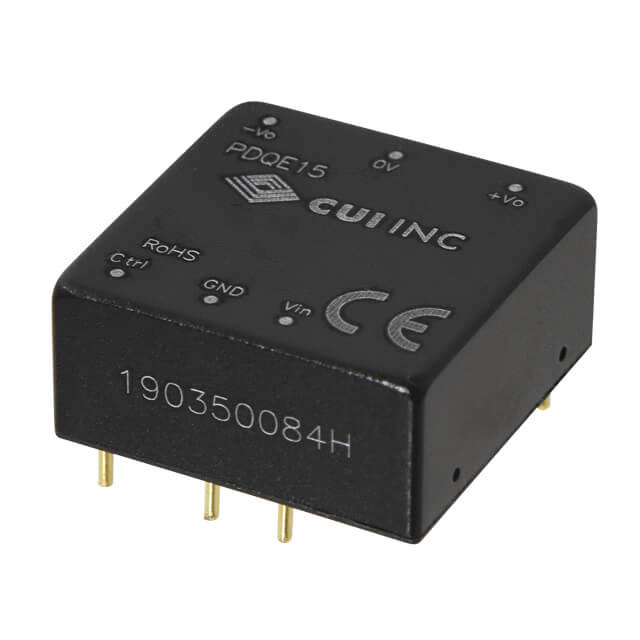

PDQE15-Q48-S15-D

PDQE15-Q48-S15-D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC DC CONVERTER 15V 15W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PDQE15-Q48-S15-D

• Description：DC DC CONVERTER 15V 15W
• Series：PDQE15-D (15W)
• Mfr：CUI Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：15 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB Scheme, EN, IEC, UL
• Standard Number：55024; 55032 Class A; 62368-1
