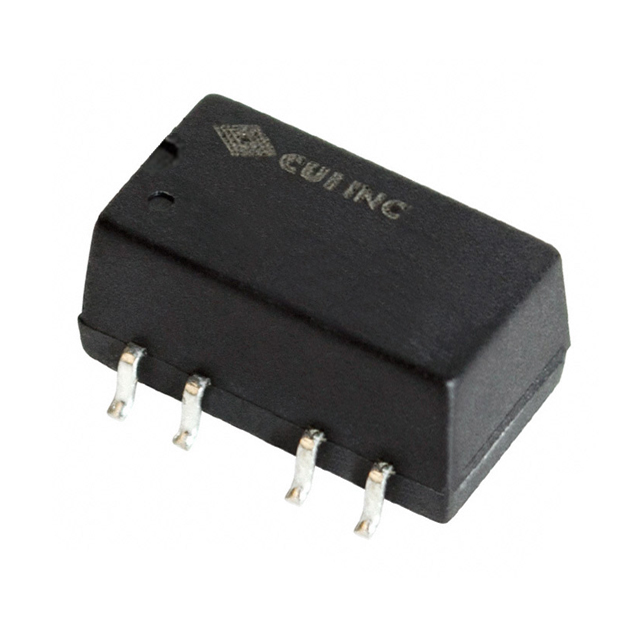

PDS1-S3-D5-M

PDS1-S3-D5-M is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC DC CONVERTER +/-5V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PDS1-S3-D5-M

• Description：DC DC CONVERTER +/-5V 1W
• Series：PDS1-M (1W)
• Mfr：CUI Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：2.97V
• Voltage - Input (Max)：3.63V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA, 100mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：78%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module, 6 Leads
• Size / Dimension：0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：EN
• Standard Number：55024; 55032 Class A
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PDS1-S3-D5-M
