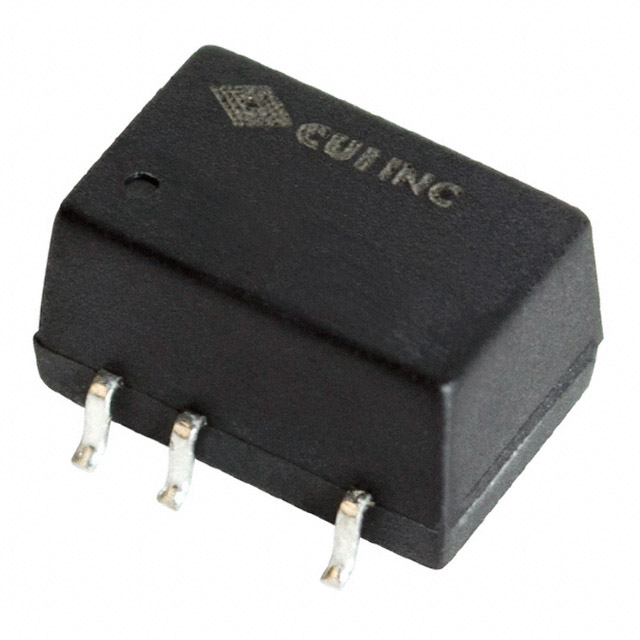

PDS1-S3-S3-M-TR

PDS1-S3-S3-M-TR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC DC CONVERTER 3.3V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PDS1-S3-S3-M-TR

• Description：DC DC CONVERTER 3.3V 1W
• Series：PDS1-M (1W)
• Mfr：CUI Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：2.97V
• Voltage - Input (Max)：3.63V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：303mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：72%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module, 5 Leads
• Size / Dimension：0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：EN
• Standard Number：55024; 55032 Class A
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PDS1-S3-S3-M-TR
