Product Detailed Parameters
- Description：FERRITE BEAD 10 OHM 01005 1LN
- Series：FB
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：1
- Impedance @ Frequency：10 Ohms @ 100 MHz
- Current Rating (Max)：540mA
- DC Resistance (DCR) (Max)：100mOhm
- Ratings：-
- Operating Temperature：-40°C ~ 105°C
- Package / Case：01005 (0402 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.009" (0.22mm)
- Size / Dimension：0.016" L x 0.008" W (0.40mm x 0.20mm)
- Features：-
Download product information
Overview

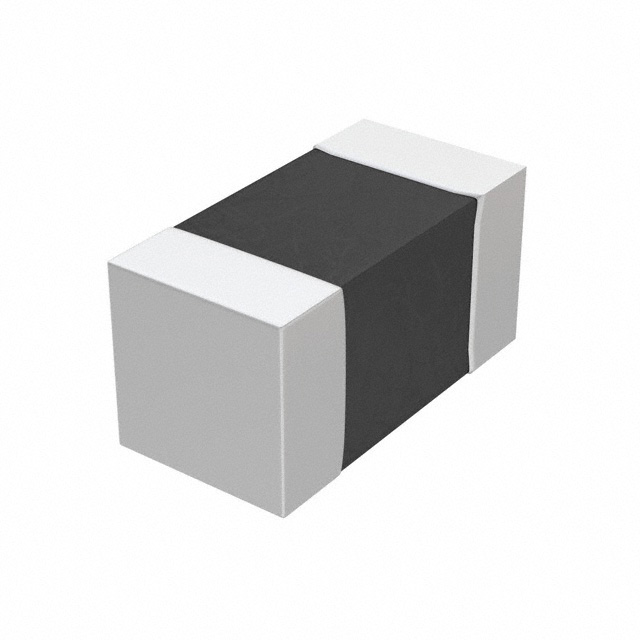

The PE-01005FB100JT is a single-line ferrite bead chip manufactured by Pulse Electronics. It features a 01005 (0402 metric) surface-mount package with dimensions of 0.40mm length, 0.20mm width, and a maximum height of 0.22mm. The component provides an impedance of 10 Ohms at 100 MHz and supports a maximum DC current of 540mA. Its maximum DC resistance is 100 milliohms. The device operates within a temperature range of -40°C to +105°C.
Feature Summary
- Provides electromagnetic interference suppression through high-frequency impedance characteristics.
- Utilizes a compact multilayer ceramic construction for space-constrained applications.
- Designed for signal line filtering in surface-mount PCB assemblies.
Applications
- Signal line filtering in electronic circuits
- Electromagnetic interference suppression
- Power supply noise reduction
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with Pulse Electronics or authorized distributors before procurement. Confirm that the 01005 package dimensions align with your PCB footprint requirements. Ensure the operating temperature range meets your system's environmental specifications. Check for any recent product change notices regarding material composition or manufacturing location changes.
Selection Notes
Select this component when a low-profile, miniature ferrite bead is required for high-density boards. The 10 Ohm impedance at 100 MHz suits general EMI suppression needs. Verify that the 540mA current rating exceeds the maximum expected DC load on the filtered line. Consider the 100 milliohm DCR impact on voltage drop if used in power delivery paths.
Part Context
This part belongs to Pulse Electronics' FB series of multilayer ferrite beads. It is designed as a passive filter component for suppressing high-frequency noise in sensitive signal lines. The 01005 package size represents one of the smallest standard footprints available for this type of component, enabling miniaturization in modern portable electronics.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer cross-reference guides for equivalent impedance and package dimensions from other suppliers.
