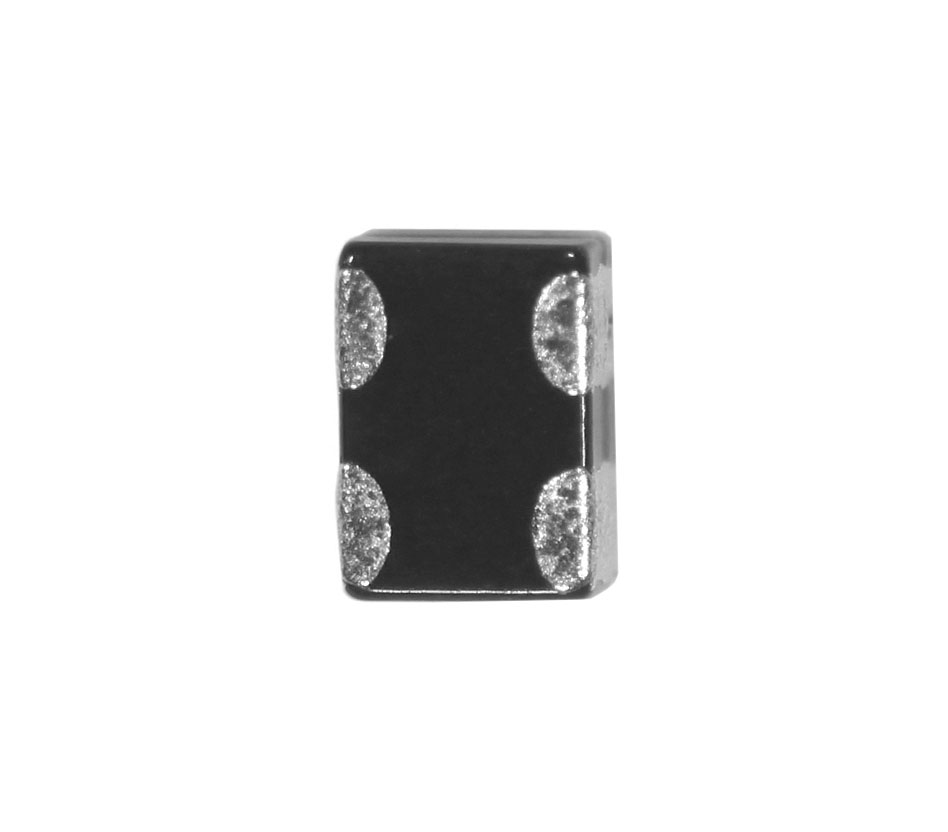

PE-0302MCMC470MT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 100MA 2LN 47 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-0302MCMC470MT
- Description：CMC 100MA 2LN 47 OHM SMD
- Series：302
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：100mA
- DC Resistance (DCR) (Max)：5Ohm
- Voltage Rating - DC：5V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.033" L x 0.026" W (0.85mm x 0.65mm)
- Height (Max)：0.018" (0.45mm)
- Package / Case：0302 (0806 Metric), 4 Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：47 Ohms @ 100 MHz
Common Mode Chokes datasheet and documents for PE-0302MCMC470MT
Common Mode Chokes Overview
The PE-0302MCMC470MT is a two-line common mode choke manufactured by Pulse Electronics, designed for surface mount applications. It features an impedance of 47 Ohms at 100 MHz and supports a maximum rated current of 100 mA. The DC resistance (DCR) is specified at a maximum of 5 Ohms. The component operates within a temperature range of -40°C to 85°C and utilizes a 0302 (0806 Metric) package with four leads. Physical dimensions are 0.85mm in length, 0.65mm in width, and a maximum height of 0.45mm.
Common Mode Chokes Feature Summary
- Designed for signal line filtering applications
- Compact surface mount construction suitable for space-constrained designs
- Two-line configuration for differential noise suppression
Common Mode Chokes Applications
- High-speed data transmission lines
- Noise reduction in electronic circuits
- Signal integrity protection
Common Mode Chokes Procurement Notes
Verify part status as obsolete before procurement planning. Confirm availability through authorized distributors or secondary markets. Ensure compatibility with existing design specifications regarding impedance and current ratings. Check for alternative components if supply chain continuity is required.
Common Mode Chokes Selection Notes
Select this component for applications requiring low-profile signal line filtering. Consider the 100 mA current rating and 47 Ohm impedance at 100 MHz for appropriate noise attenuation. Evaluate the 0302 package size against board space constraints. Verify thermal performance within the -40°C to 85°C operating range.
Common Mode Chokes Part Context
This component belongs to the 0302 series of common mode chokes from Pulse Electronics. It is part of a family of surface mount filters designed for compact electronic assemblies. The series includes various impedance values tailored for different signal line requirements.
Common Mode Chokes Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for potential alternatives.
