PE-0403MCMC900ST

Common Mode Chokes Overview

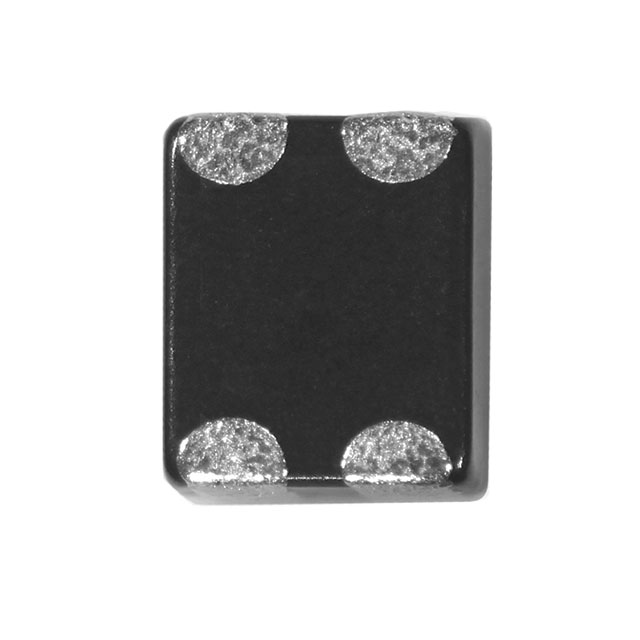

The PE-0403MCMC900ST is a two-line common mode choke manufactured by Pulse Electronics, designed for surface mount applications. It features an impedance of 90 Ohms at 100 MHz and supports a maximum current rating of 100 mA. The component has a maximum DC resistance (DCR) of 4.5 Ohms and operates within a temperature range of -40°C to 85°C. Housed in a compact 0403 (1210 metric) package with four leads, it measures 1.25mm in length, 1.00mm in width, and 0.65mm in height. This signal line filter is rated for 5V DC.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for dual signal lines
• Compact surface mount footprint suitable for space-constrained designs
• Operates reliably across extended industrial temperature ranges

Common Mode Chokes Applications

• Signal line filtering in portable electronic devices
• Noise suppression in high-speed data transmission circuits
• EMI reduction in consumer electronics interfaces

Common Mode Chokes Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels due to obsolete status. Confirm lot traceability and storage conditions prior to integration. Ensure compatibility with existing PCB footprints and reflow soldering profiles. Validate electrical parameters against updated datasheets if available.

Common Mode Chokes Selection Notes

Select this component for applications requiring specific 90 Ohm impedance at 100 MHz with low current handling. Consider the 0403 package size for board real estate constraints. Evaluate thermal performance within the specified operating range. Compare DCR values against circuit loss requirements.

Common Mode Chokes Part Context

This part belongs to the 0403 series of common mode chokes from Pulse Electronics. It shares design characteristics with other variants in the series, differing primarily in impedance ratings and physical dimensions. The series targets compact signal filtering needs in modern electronics.

Common Mode Chokes Replacement Considerations

The PE-0403MCMC400ST and PE-0403MCMC900ST are documented as related parts within the same series. Verify pinout compatibility and impedance specifications when substituting. Check for equivalent package dimensions and thermal ratings.
