PE-0603CD430JTT

Fixed Inductors Overview

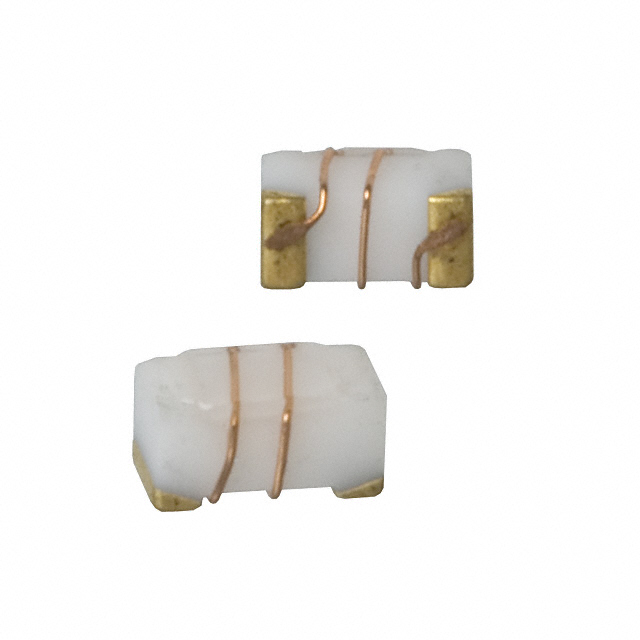

The PE-0603CD430JTT is a fixed surface-mount inductor manufactured by Pulse Electronics, designed for general-purpose applications. It features an unshielded drum core wirewound construction with a ceramic magnetic core. The component provides an inductance of 43 nH with a tolerance of ±5%. It supports a maximum DC current of 600 mA and exhibits a maximum DC resistance of 280 mOhm. The self-resonant frequency is specified at 1.7 GHz, with a Q factor of 35 measured at 250 MHz. Operating within a temperature range of -40°C to +125°C, it utilizes a standard 0603 (1608 metric) package footprint.

Fixed Inductors Feature Summary

• Unshielded drum core wirewound design utilizing a ceramic magnetic core
• High self-resonant frequency capability suitable for RF signal paths
• Robust thermal stability across extended industrial temperature ranges

Fixed Inductors Applications

• RF filtering circuits
• General-purpose signal processing
• Impedance matching networks

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm packaging configuration, as variations exist between tape-and-reel, cut tape, and custom reel formats. Confirm RoHS compliance status and lead times directly with authorized distributors prior to finalizing procurement plans.

Fixed Inductors Selection Notes

Select this component when an unshielded inductor is required to minimize parasitic capacitance effects in high-frequency designs. Ensure the PCB layout accommodates the 0603 footprint dimensions and that the circuit current requirements remain below the 600 mA saturation limit to maintain stable inductance values.

Fixed Inductors Part Context

This part belongs to the PE-0603CD series from Pulse Electronics, which focuses on compact, unshielded wirewound inductors. The series offers various inductance values optimized for space-constrained surface-mount applications requiring reliable performance in consumer electronics and communication hardware.

Fixed Inductors Replacement Considerations

PE-0603CD330JTT serves as a verified substitute within the same series offering similar physical dimensions and construction methods.
