Product Detailed Parameters
- Description：FERRITE BEAD 600 OHM 0603 1LN
- Series：HFB
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：1
- Impedance @ Frequency：600 Ohms @ 100 MHz
- Current Rating (Max)：500mA
- DC Resistance (DCR) (Max)：350mOhm
- Ratings：-
- Operating Temperature：-40°C ~ 105°C
- Package / Case：0603 (1608 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.041" (1.05mm)
- Size / Dimension：0.063" L x 0.032" W (1.60mm x 0.80mm)
- Features：-
Download product information
Overview

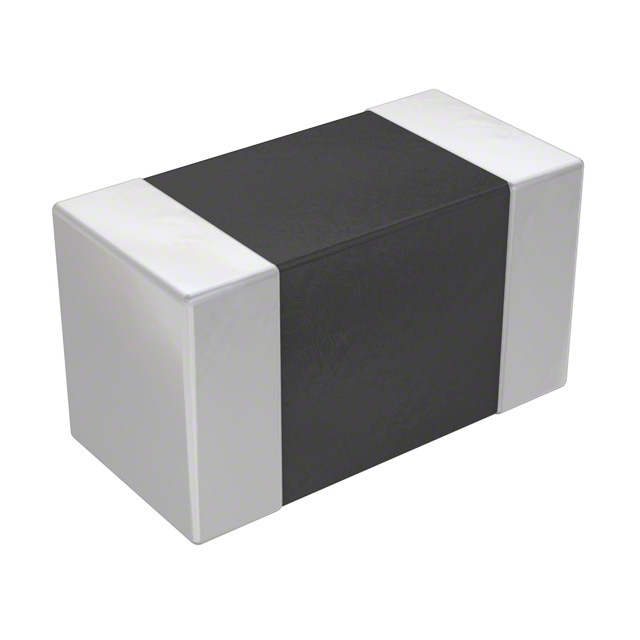

The PE-0603HFB601ST is a signal line ferrite bead manufactured by Pulse Electronics in the HFB series. It features a 0603 (1608 metric) surface-mount package with dimensions of 1.60mm length, 0.80mm width, and a maximum height of 1.05mm. The component provides an impedance of 600 Ohms at a test frequency of 100 MHz. It has a maximum DC resistance of 350 milliohms and a rated current of 500 mA. The operating temperature range spans from -40°C to +105°C.
Feature Summary
- Provides high impedance filtering for signal lines at 100 MHz
- Compact 0603 surface-mount footprint for space-constrained designs
- Shielded construction to minimize electromagnetic interference
Applications
- Signal line noise suppression
- High-frequency circuit filtering
- Electromagnetic interference reduction in compact electronics
Procurement Notes
Verify the specific ordering suffix and packaging configuration required for your production needs. Confirm that the RoHS compliance status meets your regulatory requirements. Ensure the supplier provides valid traceability documentation. Check for any specific handling instructions related to moisture sensitivity level 1. Validate that the component matches the exact impedance and current ratings specified for your design.
Selection Notes
Select this component when a 600 Ohm impedance at 100 MHz is required for signal integrity. The 500 mA current rating suits low-power signal applications. The 0603 package allows for dense PCB layouts. Consider the 350 milliohm DC resistance impact on signal loss. Verify thermal performance within the -40°C to +105°C operational range.
Part Context
This ferrite bead belongs to Pulse Electronics' HFB series of chip ferrite beads. The series offers various impedance values in standard SMD packages. The PE-0603HFB601ST specifically targets signal line protection in consumer and industrial electronics requiring compact noise suppression solutions.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer cross-reference guides for equivalent components with matching impedance and current ratings.
