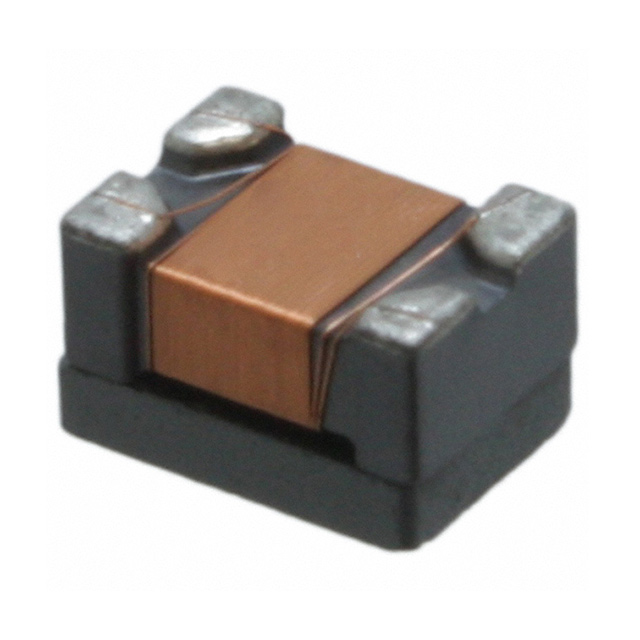

PE-0805CCMC361STS is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 280MA 2LN 360 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-0805CCMC361STS
- Description：CMC 280MA 2LN 360 OHM SMD
- Series：PulseChip™CCMC
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：280mA
- DC Resistance (DCR) (Max)：450mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.079" L x 0.047" W (2.00mm x 1.20mm)
- Height (Max)：0.051" (1.30mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：360 Ohms @ 100 MHz
Common Mode Chokes datasheet and documents for PE-0805CCMC361STS
Common Mode Chokes Overview
The PE-0805CCMC361STS is a two-line surface mount common mode choke from Pulse Electronics. It provides an impedance of 360 Ohms at 100 MHz with a maximum DC current rating of 280 mA and a maximum DC resistance of 450 mOhms. The component operates within a temperature range of -40°C to +85°C and utilizes SMD/SMT termination for PCB mounting.
Common Mode Chokes Feature Summary
- Provides effective filtering for common mode noise in high-frequency signal lines
- Compact 0805 package design suitable for space-constrained circuit boards
- Two-line configuration supports differential signal transmission applications
Common Mode Chokes Applications
- USB 2.0 signal line filtering
- LVDS interface protection
- HDMI data line suppression
Common Mode Chokes Procurement Notes
Verify the specific impedance tolerance and DC resistance values against the official datasheet before integration. Confirm that the 280 mA current rating meets the operational requirements of the target circuit. Ensure the 0805 footprint dimensions align with the PCB layout constraints.
Common Mode Chokes Selection Notes
Select this component for applications requiring moderate noise suppression on high-speed digital interfaces. The 360 Ohm impedance offers a balance between attenuation and signal integrity for standard USB and LVDS protocols. Consider the low DC resistance to minimize voltage drop across the filtered lines.
Common Mode Chokes Part Context
This part belongs to the PulseChip series of common mode chokes designed for consumer electronics. It addresses EMI issues in portable devices and computer peripherals where small form factors are critical. The series includes various impedance options tailored for different signal speeds.
Common Mode Chokes Replacement Considerations
Check for direct substitutes within the same CCMC series or other manufacturers offering identical 0805 footprints and 360 Ohm impedance ratings. Verify pin compatibility and thermal characteristics when considering alternative sources.
